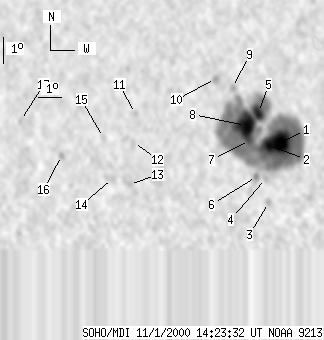

SOHO MDI 2000-11-01 14:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100 | 749 | 53 | 400 | 2.57 | 271.70 | -21.55 | 93.73 | 0.3694 | 1681.8 | 659.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 14:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31 | 681 | 16 | 362 | 2.28 | 272.89 | -20.36 | 94.85 | 0.3504 | 2166.7 | 685.9 | |
| 13 | -1 | 7 | -1 | 2.15 | 272.40 | -20.85 | 95.07 | 0.3587 | 1602.2 | 999999 | |
| 0 | 5 | 0 | 3 | -0.05 | 272.41 | -20.84 | 101.11 | 0.3641 | -338.0 | -232.5 | |
| 0 | 3 | 0 | 2 | 0.87 | 272.29 | -20.96 | 98.54 | 0.3633 | 556.0 | 493.3 | |
| 13 | -1 | 7 | -1 | 3.41 | 271.96 | -21.29 | 91.48 | 0.3642 | 1618.6 | 999999 | |
| 0 | 9 | 0 | 5 | 0.94 | 271.92 | -21.34 | 98.19 | 0.3692 | 846.0 | 560.9 | |
| 5 | -1 | 3 | -1 | 2.32 | 271.61 | -21.64 | 94.37 | 0.3712 | 1260.8 | 999999 | |
| 38 | -1 | 20 | -1 | 2.89 | 271.43 | -21.82 | 92.79 | 0.3733 | 1555.3 | 999999 | |
| 0 | 5 | 0 | 2 | 4.34 | 270.86 | -22.40 | 88.88 | 0.3817 | 164.0 | 231.6 | |
| 0 | 7 | 0 | 4 | 4.67 | 270.13 | -23.12 | 88.03 | 0.3933 | 595.0 | 554.3 | |
| 0 | 3 | 0 | 2 | 3.21 | 266.77 | -26.48 | 91.29 | 0.4472 | 655.0 | 649.6 | |
| 0 | 8 | 0 | 5 | 2.10 | 266.71 | -26.54 | 93.78 | 0.4494 | 846.0 | 622.7 | |
| 0 | 3 | 0 | 2 | 0.47 | 266.56 | -26.69 | 97.33 | 0.4548 | 613.0 | 670.3 | |
| 0 | 12 | 0 | 6 | 0.68 | 265.82 | -27.43 | 96.65 | 0.4657 | 435.0 | 374.8 | |
| 0 | 5 | 0 | 3 | 2.24 | 265.41 | -27.84 | 93.21 | 0.4694 | 544.0 | 412.7 | |
| 0 | 4 | 0 | 2 | 1.48 | 263.58 | -29.68 | 94.42 | 0.4985 | 828.0 | 649.2 | |
| 0 | 4 | 0 | 2 | 2.76 | 261.71 | -31.54 | 91.62 | 0.5249 | -386.0 | -460.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
