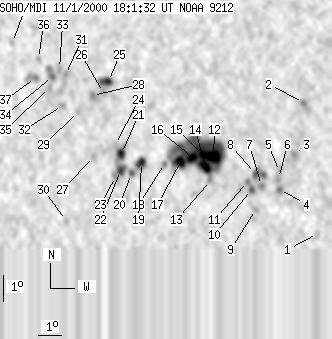

SOHO MDI 2000-11-01 18:01:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62 | 524 | 33 | 289 | 10.30 | 267.38 | -23.87 | 74.31 | 0.4150 | 958.4 | 296.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 18:01:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 9 | 0 | 5 | 7.10 | 273.72 | -17.54 | 79.81 | 0.3053 | 480.0 | 514.9 | |
| 0 | 12 | 0 | 6 | 12.16 | 272.86 | -18.40 | 65.32 | 0.3410 | 830.0 | 539.4 | |
| 0 | 9 | 0 | 5 | 10.13 | 272.62 | -18.63 | 71.24 | 0.3337 | 1020.0 | 800.5 | |
| 0 | 5 | 0 | 3 | 8.77 | 272.08 | -19.18 | 75.60 | 0.3367 | 1029.0 | 910.1 | |
| 0 | 8 | 0 | 4 | 9.46 | 272.04 | -19.21 | 73.62 | 0.3399 | 857.0 | 724.1 | |
| 0 | 7 | 0 | 4 | 9.19 | 272.02 | -19.24 | 74.42 | 0.3392 | 968.0 | 886.0 | |
| 0 | 4 | 0 | 2 | 8.90 | 271.33 | -19.93 | 75.67 | 0.3491 | 1106.0 | 881.4 | |
| 0 | 20 | 0 | 11 | 9.36 | 271.05 | -20.20 | 74.57 | 0.3551 | 962.0 | 769.4 | |
| 0 | 5 | 0 | 3 | 7.97 | 271.13 | -20.13 | 78.41 | 0.3494 | 852.0 | 725.5 | |
| 0 | 7 | 0 | 4 | 8.74 | 270.92 | -20.33 | 76.36 | 0.3550 | 953.0 | 714.7 | |
| 0 | 5 | 0 | 3 | 9.04 | 270.74 | -20.52 | 75.63 | 0.3589 | 901.0 | 757.9 | |
| 9 | 234 | 5 | 126 | 9.97 | 269.25 | -22.00 | 74.04 | 0.3855 | 1884.5 | 658.2 | |
| 0 | 5 | 0 | 3 | 9.04 | 269.19 | -22.07 | 76.46 | 0.3833 | 503.0 | 503.8 | |
| 11 | -12 | 6 | -12 | 9.57 | 268.94 | -22.31 | 75.22 | 0.3889 | 1449.9 | 999999 | |
| 5 | -12 | 3 | -12 | 10.03 | 268.78 | -22.47 | 74.15 | 0.3930 | 1553.0 | 999999 | |
| 8 | -12 | 4 | -12 | 9.91 | 268.37 | -22.89 | 74.70 | 0.3989 | 1384.9 | 999999 | |
| 8 | -12 | 4 | -12 | 9.74 | 267.87 | -23.38 | 75.37 | 0.4061 | 1188.2 | 999999 | |
| 0 | 4 | 0 | 2 | 9.64 | 267.20 | -24.06 | 75.92 | 0.4162 | 272.0 | 339.3 | |
| 7 | 16 | 4 | 9 | 9.65 | 266.21 | -25.05 | 76.34 | 0.4314 | 927.7 | 560.1 | |
| 0 | 6 | 0 | 3 | 9.21 | 265.81 | -25.45 | 77.49 | 0.4363 | -771.0 | -530.7 | |
| 6 | 25 | 3 | 14 | 9.97 | 265.31 | -25.94 | 75.99 | 0.4460 | 1108.7 | 755.0 | |
| 4 | 12 | 2 | 7 | 9.31 | 265.33 | -25.93 | 77.44 | 0.4440 | -523.3 | -264.0 | |
| 0 | 8 | 0 | 4 | 9.07 | 265.13 | -26.13 | 78.05 | 0.4464 | 312.0 | 197.2 | |
| 0 | 5 | 0 | 3 | 10.31 | 265.02 | -26.23 | 75.36 | 0.4514 | 448.0 | 392.0 | |
| 4 | 15 | 2 | 8 | 12.74 | 264.47 | -26.79 | 70.47 | 0.4684 | -1038.9 | -863.3 | |
| 0 | 4 | 0 | 3 | 12.31 | 264.29 | -26.96 | 71.46 | 0.4692 | -808.0 | -619.4 | |
| 0 | 6 | 0 | 3 | 9.81 | 264.10 | -27.15 | 76.79 | 0.4639 | -645.0 | -469.9 | |
| 0 | 8 | 0 | 5 | 12.17 | 263.82 | -27.44 | 71.98 | 0.4756 | -890.0 | -885.1 | |
| 0 | 4 | 0 | 2 | 11.53 | 263.27 | -27.99 | 73.55 | 0.4814 | -775.0 | -722.0 | |
| 0 | 6 | 0 | 3 | 7.31 | 263.11 | -28.14 | 82.39 | 0.4740 | -544.0 | -512.6 | |
| 0 | 25 | 0 | 14 | 12.95 | 262.52 | -28.74 | 71.08 | 0.4974 | -824.0 | -797.5 | |
| 0 | 6 | 0 | 3 | 11.74 | 262.53 | -28.73 | 73.45 | 0.4929 | -720.0 | -639.5 | |
| 0 | 7 | 0 | 4 | 13.17 | 262.22 | -29.04 | 70.79 | 0.5025 | -738.0 | -658.7 | |
| 0 | 14 | 0 | 8 | 12.85 | 261.94 | -29.31 | 71.54 | 0.5052 | -1068.0 | -842.1 | |
| 0 | 4 | 0 | 3 | 12.42 | 261.86 | -29.39 | 72.42 | 0.5049 | -851.0 | -785.2 | |
| 0 | 3 | 0 | 2 | 13.53 | 261.22 | -30.04 | 70.60 | 0.5181 | -555.0 | -601.5 | |
| 0 | 13 | 0 | 8 | 12.78 | 261.18 | -30.08 | 72.02 | 0.5159 | -900.0 | -730.3 | |
| 0 | 3 | 0 | 2 | 14.11 | 259.93 | -31.33 | 70.14 | 0.5383 | -405.0 | -360.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
