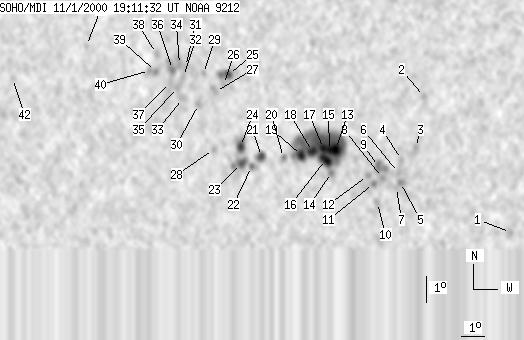

SOHO MDI 2000-11-01 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59 | 491 | 33 | 266 | 10.35 | 267.19 | -23.43 | 73.96 | 0.4081 | 960.4 | 290.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 7 | 0 | 4 | 6.94 | 276.63 | -13.99 | 78.30 | 0.2462 | 671.0 | 606.1 | |
| 0 | 4 | 0 | 2 | 12.12 | 272.88 | -17.73 | 64.65 | 0.3310 | 773.0 | 654.3 | |
| 0 | 8 | 0 | 4 | 10.14 | 272.64 | -17.98 | 70.63 | 0.3235 | 955.0 | 824.9 | |
| 0 | 8 | 0 | 4 | 9.66 | 272.09 | -18.53 | 72.50 | 0.3299 | 667.0 | 650.0 | |
| 0 | 5 | 0 | 3 | 8.77 | 272.10 | -18.52 | 75.14 | 0.3262 | 1061.0 | 964.1 | |
| 0 | 6 | 0 | 3 | 9.16 | 271.99 | -18.62 | 74.06 | 0.3293 | 982.0 | 906.1 | |
| 0 | 4 | 0 | 2 | 8.58 | 271.94 | -18.67 | 75.83 | 0.3280 | 621.0 | 604.3 | |
| 0 | 4 | 0 | 2 | 8.95 | 271.35 | -19.27 | 75.11 | 0.3388 | 1022.0 | 895.7 | |
| 0 | 16 | 0 | 9 | 9.37 | 271.16 | -19.46 | 74.03 | 0.3434 | 1026.0 | 865.3 | |
| 0 | 5 | 0 | 3 | 7.98 | 271.19 | -19.43 | 78.02 | 0.3382 | 870.0 | 748.9 | |
| 0 | 5 | 0 | 2 | 8.71 | 270.99 | -19.63 | 76.03 | 0.3437 | 939.0 | 780.6 | |
| 0 | 5 | 0 | 3 | 9.01 | 270.72 | -19.89 | 75.33 | 0.3490 | 822.0 | 755.9 | |
| 8 | 218 | 4 | 117 | 9.98 | 269.33 | -21.29 | 73.57 | 0.3745 | 1888.4 | 692.8 | |
| 0 | 6 | 0 | 3 | 9.09 | 269.22 | -21.40 | 75.97 | 0.3730 | 700.0 | 690.8 | |
| 3 | -13 | 2 | -13 | 9.94 | 269.08 | -21.54 | 73.84 | 0.3782 | 1876.5 | 999999 | |
| 12 | -13 | 6 | -13 | 9.58 | 268.93 | -21.68 | 74.83 | 0.3791 | 1444.3 | 999999 | |
| 5 | -13 | 3 | -13 | 10.01 | 268.82 | -21.80 | 73.81 | 0.3824 | 1539.1 | 999999 | |
| 7 | -13 | 4 | -13 | 9.88 | 268.36 | -22.25 | 74.40 | 0.3890 | 1401.1 | 999999 | |
| 7 | -13 | 4 | -13 | 9.71 | 267.91 | -22.71 | 75.07 | 0.3955 | 1198.7 | 999999 | |
| 0 | 6 | 0 | 3 | 9.61 | 267.15 | -23.46 | 75.69 | 0.4069 | 422.0 | 328.7 | |
| 5 | 13 | 3 | 7 | 9.62 | 266.21 | -24.40 | 76.10 | 0.4214 | 929.8 | 641.1 | |
| 0 | 6 | 0 | 3 | 9.22 | 265.81 | -24.80 | 77.20 | 0.4265 | -713.0 | -560.2 | |
| 4 | 23 | 2 | 12 | 9.33 | 265.37 | -25.24 | 77.14 | 0.4335 | -542.2 | -46.7 | |
| 5 | 20 | 3 | 11 | 9.98 | 265.28 | -25.34 | 75.69 | 0.4368 | 1195.1 | 744.1 | |
| 3 | 18 | 2 | 10 | 12.76 | 264.48 | -26.13 | 70.05 | 0.4589 | -996.3 | -781.1 | |
| 0 | 4 | 0 | 2 | 12.36 | 264.31 | -26.31 | 70.99 | 0.4598 | -656.0 | -630.7 | |
| 0 | 7 | 0 | 4 | 12.08 | 263.99 | -26.63 | 71.76 | 0.4634 | -1034.0 | -896.5 | |
| 0 | 5 | 0 | 3 | 9.83 | 264.12 | -26.50 | 76.51 | 0.4540 | -638.0 | -585.4 | |
| 0 | 4 | 0 | 2 | 12.76 | 263.38 | -27.24 | 70.67 | 0.4750 | -646.0 | -577.9 | |
| 0 | 6 | 0 | 3 | 11.55 | 263.29 | -27.32 | 73.21 | 0.4717 | -723.0 | -695.4 | |
| 0 | 3 | 0 | 2 | 13.00 | 262.55 | -28.07 | 70.62 | 0.4881 | -885.0 | -805.3 | |
| 0 | 6 | 0 | 3 | 12.61 | 262.50 | -28.11 | 71.42 | 0.4871 | -931.0 | -916.3 | |
| 0 | 12 | 0 | 7 | 11.76 | 262.56 | -28.06 | 73.12 | 0.4833 | -727.0 | -561.5 | |
| 0 | 10 | 0 | 6 | 13.07 | 262.27 | -28.35 | 70.63 | 0.4923 | -776.0 | -704.6 | |
| 0 | 5 | 0 | 3 | 12.18 | 262.29 | -28.33 | 72.40 | 0.4887 | -862.0 | -835.3 | |
| 0 | 16 | 0 | 9 | 12.87 | 261.98 | -28.64 | 71.18 | 0.4957 | -1080.0 | -832.5 | |
| 0 | 5 | 0 | 3 | 12.36 | 261.95 | -28.67 | 72.19 | 0.4942 | -862.0 | -836.9 | |
| 0 | 6 | 0 | 3 | 13.47 | 261.18 | -29.44 | 70.42 | 0.5094 | -734.0 | -602.1 | |
| 0 | 6 | 0 | 3 | 12.76 | 261.22 | -29.39 | 71.74 | 0.5061 | -870.0 | -761.6 | |
| 0 | 2 | 0 | 1 | 12.79 | 260.95 | -29.67 | 71.81 | 0.5102 | -784.0 | -778.1 | |
| 0 | 3 | 0 | 2 | 13.66 | 257.90 | -32.71 | 71.53 | 0.5558 | -542.0 | -474.7 | |
| 0 | 4 | 0 | 3 | 12.23 | 254.58 | -36.04 | 75.07 | 0.5973 | -302.0 | -276.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
