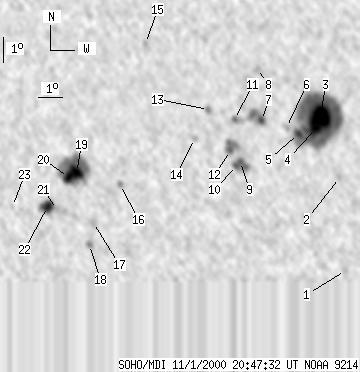

SOHO MDI 2000-11-01 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96 | 605 | 50 | 322 | -10.51 | 275.84 | -13.90 | 138.03 | 0.3483 | -436.3 | -185.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -15.48 | 280.30 | -9.44 | 154.80 | 0.3729 | -692.0 | -578.4 | |
| 0 | 5 | 0 | 3 | -11.72 | 280.21 | -9.53 | 149.34 | 0.3193 | -760.0 | -664.0 | |
| 46 | 315 | 24 | 163 | -9.30 | 279.53 | -10.20 | 143.04 | 0.2921 | -1972.7 | -741.1 | |
| -3 | -3 | -3 | -3 | -9.78 | 279.32 | -10.42 | 143.46 | 0.3007 | 999999 | 999999 | |
| 4 | -3 | 2 | -3 | -9.99 | 278.64 | -11.10 | 142.13 | 0.3103 | -1049.6 | 999999 | |
| 0 | 7 | 0 | 4 | -9.76 | 278.17 | -11.57 | 140.50 | 0.3122 | -677.0 | -586.3 | |
| 4 | 28 | 2 | 15 | -9.49 | 277.18 | -12.56 | 137.63 | 0.3197 | -1133.9 | -867.1 | |
| 0 | 8 | 0 | 4 | -7.44 | 277.09 | -12.65 | 132.67 | 0.2967 | -836.0 | -768.9 | |
| 2 | 26 | 1 | 14 | -11.14 | 276.26 | -13.47 | 138.96 | 0.3498 | 1147.2 | 903.8 | |
| 3 | -9 | 1 | -9 | -11.30 | 276.10 | -13.64 | 138.92 | 0.3536 | 961.3 | 999999 | |
| 0 | 8 | 0 | 4 | -9.47 | 276.10 | -13.64 | 135.22 | 0.3317 | -699.0 | -563.2 | |
| 2 | 25 | 1 | 13 | -10.71 | 275.88 | -13.86 | 137.33 | 0.3487 | 1118.1 | 804.2 | |
| 0 | 4 | 0 | 2 | -9.10 | 275.07 | -14.67 | 132.32 | 0.3397 | 750.0 | 556.3 | |
| 0 | 4 | 0 | 2 | -10.26 | 274.45 | -15.29 | 133.61 | 0.3600 | -720.0 | -632.2 | |
| 0 | 4 | 0 | 2 | -6.55 | 272.62 | -17.12 | 122.09 | 0.3467 | -808.0 | -593.6 | |
| 0 | 5 | 0 | 3 | -12.16 | 271.29 | -18.44 | 131.97 | 0.4177 | 835.0 | 595.2 | |
| 0 | 7 | 0 | 4 | -13.72 | 270.04 | -19.70 | 132.85 | 0.4485 | -621.0 | -427.1 | |
| 0 | 7 | 0 | 4 | -14.62 | 269.79 | -19.95 | 133.97 | 0.4606 | 954.0 | 642.6 | |
| 14 | 110 | 7 | 61 | -11.73 | 269.49 | -20.25 | 128.56 | 0.4352 | 1713.6 | 731.4 | |
| 10 | -19 | 6 | -19 | -11.94 | 269.14 | -20.60 | 128.46 | 0.4415 | 1101.2 | 999999 | |
| 0 | 12 | 0 | 7 | -13.24 | 268.56 | -21.18 | 129.99 | 0.4609 | 835.0 | 632.1 | |
| 11 | 23 | 6 | 13 | -13.13 | 268.15 | -21.59 | 129.27 | 0.4648 | 1220.5 | 820.3 | |
| 0 | 3 | 0 | 2 | -13.17 | 266.65 | -23.09 | 127.49 | 0.4833 | 496.0 | 426.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
