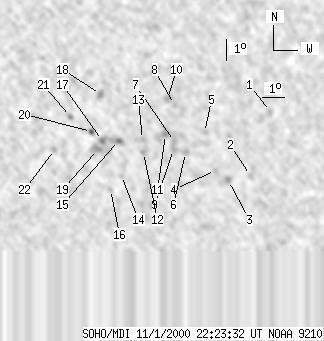

SOHO MDI 2000-11-01 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 126 | 0 | 75 | -26.92 | 291.55 | 2.69 | 184.59 | 0.5217 | 650.4 | 643.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 4 | -25.66 | 296.60 | 7.74 | 193.72 | 0.5140 | 643.0 | 582.8 | |
| 0 | 5 | 0 | 3 | -28.54 | 295.92 | 7.06 | 191.30 | 0.5532 | 498.0 | 486.6 | |
| 0 | 6 | 0 | 3 | -28.76 | 294.96 | 6.10 | 189.73 | 0.5538 | 656.0 | 692.8 | |
| 0 | 3 | 0 | 2 | -28.30 | 294.37 | 5.51 | 188.94 | 0.5458 | 703.0 | 653.8 | |
| 0 | 4 | 0 | 3 | -26.58 | 293.80 | 4.94 | 188.57 | 0.5193 | 797.0 | 698.5 | |
| 0 | 5 | 0 | 3 | -27.47 | 293.02 | 4.16 | 186.99 | 0.5309 | 741.0 | 639.4 | |
| 0 | 10 | 0 | 6 | -26.97 | 292.52 | 3.66 | 186.28 | 0.5227 | 878.0 | 864.3 | |
| 0 | 2 | 0 | 1 | -25.32 | 292.47 | 3.61 | 186.59 | 0.4979 | 736.0 | 780.5 | |
| 0 | 7 | 0 | 4 | -27.33 | 292.49 | 3.63 | 186.14 | 0.5280 | 678.0 | 589.1 | |
| 0 | 8 | 0 | 5 | -25.05 | 292.16 | 3.30 | 186.10 | 0.4933 | 745.0 | 723.6 | |
| 0 | 8 | 0 | 4 | -26.66 | 292.12 | 3.26 | 185.67 | 0.5174 | 979.0 | 841.9 | |
| 0 | 3 | 0 | 2 | -27.46 | 291.19 | 2.33 | 183.93 | 0.5282 | 732.0 | 595.6 | |
| 0 | 4 | 0 | 3 | -26.88 | 291.13 | 2.28 | 183.93 | 0.5194 | 870.0 | 770.4 | |
| 0 | 3 | 0 | 2 | -28.51 | 290.25 | 1.39 | 182.26 | 0.5429 | 612.0 | 497.6 | |
| 0 | 10 | 0 | 6 | -26.92 | 290.10 | 1.24 | 182.14 | 0.5193 | 1197.0 | 986.6 | |
| 0 | 3 | 0 | 2 | -29.15 | 289.77 | 0.91 | 181.45 | 0.5521 | 376.0 | 365.5 | |
| 0 | 6 | 0 | 3 | -26.92 | 289.41 | 0.55 | 180.95 | 0.5190 | 1161.0 | 977.4 | |
| 0 | 6 | 0 | 4 | -24.87 | 289.31 | 0.45 | 180.85 | 0.4879 | 928.0 | 754.4 | |
| 0 | 11 | 0 | 7 | -27.32 | 289.19 | 0.33 | 180.57 | 0.5250 | 882.0 | 645.1 | |
| 0 | 6 | 0 | 3 | -26.51 | 288.93 | 0.07 | 180.13 | 0.5128 | -364.0 | -217.4 | |
| 0 | 4 | 0 | 2 | -25.84 | 288.03 | -0.83 | 178.52 | 0.5029 | -980.0 | -688.1 | |
| 0 | 6 | 0 | 3 | -27.33 | 287.33 | -1.53 | 177.40 | 0.5255 | 841.0 | 712.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
