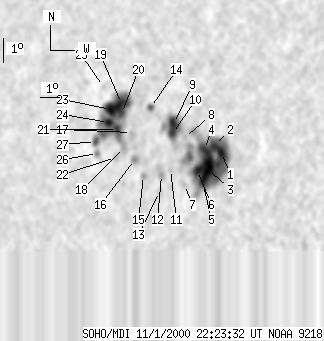

SOHO MDI 2000-11-01 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136 | 607 | 90 | 395 | 19.37 | 250.12 | -38.74 | 64.85 | 0.6539 | 32.3 | -50.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 290 | 3 | 183 | 19.22 | 253.03 | -35.83 | 63.78 | 0.6185 | 1456.2 | 515.3 | |
| 6 | -1 | 4 | -1 | 19.48 | 252.60 | -36.26 | 63.58 | 0.6248 | 644.7 | 999999 | |
| 36 | -1 | 23 | -1 | 18.52 | 252.49 | -36.36 | 65.11 | 0.6221 | 1257.7 | 999999 | |
| 13 | -1 | 8 | -1 | 19.30 | 252.14 | -36.72 | 64.07 | 0.6297 | 801.4 | 999999 | |
| -3 | -1 | -3 | -1 | 18.07 | 252.35 | -36.51 | 65.86 | 0.6221 | 999999 | 999999 | |
| 9 | -1 | 6 | -1 | 18.46 | 252.00 | -36.86 | 65.43 | 0.6279 | 601.1 | 999999 | |
| 0 | 9 | 0 | 6 | 17.88 | 251.49 | -37.37 | 66.53 | 0.6321 | -170.0 | -174.3 | |
| 0 | 2 | 0 | 1 | 19.74 | 251.00 | -37.86 | 63.95 | 0.6454 | 81.0 | 22.4 | |
| 9 | 58 | 6 | 38 | 20.27 | 250.27 | -38.59 | 63.49 | 0.6562 | -825.3 | -199.1 | |
| 7 | -9 | 4 | -9 | 19.87 | 250.33 | -38.53 | 64.05 | 0.6539 | 33.5 | 999999 | |
| 0 | 3 | 0 | 2 | 18.44 | 250.62 | -38.24 | 66.04 | 0.6448 | -467.0 | -377.0 | |
| 0 | 15 | 0 | 10 | 18.22 | 250.21 | -38.65 | 66.53 | 0.6490 | -435.0 | -353.5 | |
| 0 | 7 | 0 | 4 | 17.55 | 250.28 | -38.58 | 67.52 | 0.6458 | -480.0 | -392.3 | |
| 3 | 7 | 2 | 5 | 20.85 | 248.86 | -40.00 | 63.26 | 0.6749 | 282.4 | 49.4 | |
| 0 | 5 | 0 | 3 | 18.14 | 249.29 | -39.57 | 67.01 | 0.6599 | 409.0 | 312.4 | |
| 0 | 9 | 0 | 6 | 18.75 | 248.64 | -40.22 | 66.36 | 0.6698 | -716.0 | -635.7 | |
| 0 | 8 | 0 | 5 | 19.81 | 248.16 | -40.70 | 65.02 | 0.6791 | -590.0 | -476.2 | |
| 0 | 13 | 0 | 9 | 19.20 | 247.97 | -40.89 | 65.96 | 0.6792 | -773.0 | -496.0 | |
| 16 | 165 | 11 | 113 | 20.94 | 247.25 | -41.61 | 63.79 | 0.6937 | -1323.3 | -753.5 | |
| 5 | -19 | 3 | -19 | 20.54 | 247.38 | -41.48 | 64.29 | 0.6907 | -1261.7 | 999999 | |
| 4 | -19 | 3 | -19 | 19.90 | 247.37 | -41.49 | 65.20 | 0.6885 | -958.1 | 999999 | |
| 0 | 7 | 0 | 4 | 18.78 | 247.61 | -41.25 | 66.69 | 0.6821 | -675.0 | -475.6 | |
| 13 | -19 | 9 | -19 | 20.67 | 246.73 | -42.13 | 64.36 | 0.6986 | -934.2 | 999999 | |
| 8 | -19 | 6 | -19 | 20.15 | 246.79 | -42.06 | 65.06 | 0.6960 | -1121.2 | 999999 | |
| 0 | 3 | 0 | 2 | 21.57 | 246.02 | -42.84 | 63.39 | 0.7096 | -498.0 | -437.0 | |
| 0 | 6 | 0 | 4 | 18.89 | 246.59 | -42.27 | 66.88 | 0.6943 | -736.0 | -629.9 | |
| 3 | -19 | 2 | -19 | 19.36 | 246.33 | -42.53 | 66.31 | 0.6988 | -647.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
