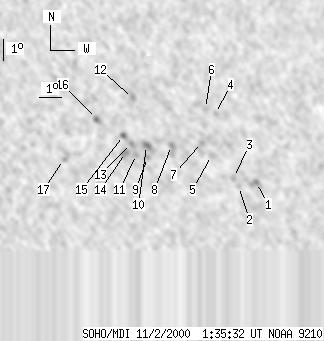

SOHO MDI 2000-11-02 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 99 | 0 | 57 | -27.12 | 291.06 | 3.96 | 186.67 | 0.5260 | 624.3 | 632.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-02 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 9 | 0 | 5 | -28.70 | 294.93 | 7.83 | 192.43 | 0.5576 | 880.0 | 727.5 | |
| 0 | 3 | 0 | 2 | -28.88 | 294.15 | 7.05 | 191.15 | 0.5577 | 451.0 | 429.4 | |
| 0 | 4 | 0 | 3 | -28.46 | 293.90 | 6.80 | 190.93 | 0.5511 | 664.0 | 646.8 | |
| 0 | 4 | 0 | 2 | -25.57 | 292.95 | 5.85 | 190.50 | 0.5064 | 811.0 | 662.8 | |
| 0 | 7 | 0 | 4 | -27.45 | 292.87 | 5.77 | 189.66 | 0.5339 | 676.0 | 570.6 | |
| 0 | 3 | 0 | 2 | -25.34 | 292.51 | 5.41 | 189.82 | 0.5019 | 634.0 | 661.3 | |
| 0 | 4 | 0 | 3 | -26.86 | 292.41 | 5.31 | 189.10 | 0.5241 | 877.0 | 849.0 | |
| 0 | 15 | 0 | 9 | -26.99 | 291.12 | 4.01 | 186.87 | 0.5233 | 681.0 | 751.8 | |
| 0 | 4 | 0 | 2 | -27.52 | 290.09 | 2.99 | 185.03 | 0.5297 | 771.0 | 807.3 | |
| 0 | 11 | 0 | 6 | -26.98 | 290.03 | 2.93 | 185.03 | 0.5215 | 1132.0 | 993.4 | |
| 0 | 4 | 0 | 2 | -27.39 | 289.61 | 2.51 | 184.24 | 0.5270 | 835.0 | 881.0 | |
| 0 | 4 | 0 | 2 | -24.88 | 289.39 | 2.28 | 184.26 | 0.4892 | 982.0 | 914.9 | |
| 0 | 4 | 0 | 2 | -26.89 | 289.38 | 2.28 | 183.93 | 0.5194 | 1132.0 | 997.0 | |
| 0 | 8 | 0 | 5 | -27.29 | 289.13 | 2.03 | 183.45 | 0.5252 | 913.0 | 751.5 | |
| 0 | 6 | 0 | 3 | -26.53 | 289.03 | 1.93 | 183.37 | 0.5137 | -379.0 | -110.7 | |
| 0 | 6 | 0 | 3 | -25.77 | 287.86 | 0.76 | 181.37 | 0.5015 | -909.0 | -777.4 | |
| 0 | 3 | 0 | 2 | -27.61 | 286.44 | -0.66 | 178.89 | 0.5291 | 462.0 | 554.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
