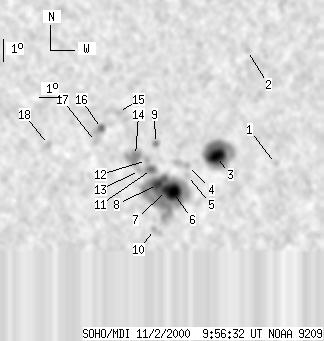

SOHO MDI 2000-11-02 09:56:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58 | 433 | 36 | 263 | -23.09 | 305.52 | 23.00 | 218.43 | 0.5802 | -1255.9 | -584.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-02 09:56:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -22.90 | 310.27 | 27.75 | 223.82 | 0.6219 | -559.0 | -553.4 | |
| 0 | 4 | 0 | 3 | -18.04 | 308.07 | 25.55 | 227.87 | 0.5552 | 645.0 | 514.6 | |
| 20 | 100 | 12 | 61 | -22.50 | 307.44 | 24.92 | 221.35 | 0.5914 | -1481.9 | -671.8 | |
| 0 | 15 | 0 | 9 | -22.85 | 306.17 | 23.66 | 219.52 | 0.5834 | -910.0 | -790.4 | |
| 0 | 3 | 0 | 2 | -23.28 | 306.26 | 23.74 | 219.10 | 0.5886 | -587.0 | -595.7 | |
| 23 | 203 | 14 | 124 | -24.00 | 305.75 | 23.23 | 217.69 | 0.5917 | -1229.4 | -552.5 | |
| -6 | -6 | -6 | -6 | -23.91 | 305.41 | 22.90 | 217.41 | 0.5878 | 999999 | 999999 | |
| 8 | -6 | 5 | -6 | -23.63 | 304.95 | 22.43 | 217.17 | 0.5809 | -1434.7 | 999999 | |
| 0 | 6 | 0 | 3 | -21.85 | 304.55 | 22.04 | 218.78 | 0.5582 | 100.0 | 123.7 | |
| 0 | 11 | 0 | 7 | -25.61 | 305.19 | 22.68 | 215.28 | 0.6042 | 32.0 | 218.2 | |
| 4 | 13 | 3 | 8 | -22.97 | 304.56 | 22.04 | 217.46 | 0.5704 | -1014.5 | -891.9 | |
| 0 | 5 | 0 | 3 | -22.57 | 304.27 | 21.75 | 217.57 | 0.5635 | -973.0 | -922.6 | |
| 0 | 4 | 0 | 3 | -23.00 | 304.03 | 21.51 | 216.77 | 0.5660 | -677.0 | -626.8 | |
| 0 | 27 | 0 | 16 | -22.34 | 303.74 | 21.22 | 217.17 | 0.5563 | -1285.0 | -983.7 | |
| 0 | 12 | 0 | 7 | -20.48 | 302.71 | 20.19 | 218.09 | 0.5263 | -804.0 | -694.7 | |
| 3 | 12 | 2 | 7 | -21.14 | 302.06 | 19.54 | 216.38 | 0.5280 | -1007.4 | -770.2 | |
| 0 | 9 | 0 | 5 | -21.69 | 301.87 | 19.35 | 215.47 | 0.5327 | -553.0 | -477.0 | |
| 0 | 6 | 0 | 3 | -21.77 | 299.83 | 17.31 | 212.48 | 0.5167 | 575.0 | 634.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
