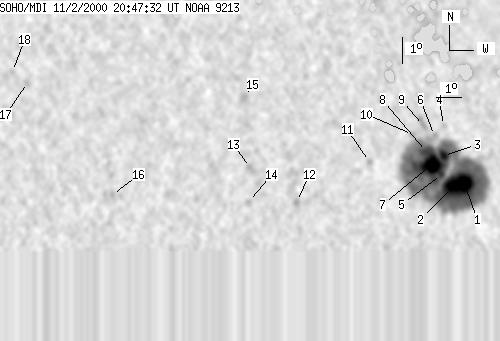

SOHO MDI 2000-11-02 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106 | 748 | 55 | 370 | 2.70 | 271.79 | -4.77 | 108.60 | 0.0883 | 1863.8 | 714.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-02 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28 | 676 | 14 | 336 | 2.21 | 273.11 | -3.46 | 118.62 | 0.0689 | 2207.3 | 768.8 | |
| 27 | -1 | 14 | -1 | 2.05 | 272.64 | -3.92 | 117.51 | 0.0773 | 1950.5 | 999999 | |
| 7 | -1 | 4 | -1 | 3.28 | 272.29 | -4.27 | 100.72 | 0.0760 | 1667.9 | 999999 | |
| 0 | 5 | 0 | 2 | 4.44 | 272.29 | -4.28 | 85.33 | 0.0749 | 550.0 | 422.7 | |
| 3 | -1 | 2 | -1 | 2.55 | 272.22 | -4.34 | 109.52 | 0.0807 | 1756.5 | 999999 | |
| 0 | 7 | 0 | 3 | 4.05 | 271.94 | -4.62 | 90.46 | 0.0808 | 765.0 | 754.1 | |
| 30 | -1 | 15 | -1 | 2.94 | 271.83 | -4.73 | 103.72 | 0.0852 | 2055.6 | 999999 | |
| 11 | -1 | 6 | -1 | 3.43 | 271.63 | -4.93 | 97.56 | 0.0869 | 1214.5 | 999999 | |
| 0 | 11 | 0 | 5 | 4.43 | 271.51 | -5.05 | 86.04 | 0.0884 | 596.0 | 491.1 | |
| 0 | 4 | 0 | 2 | 4.08 | 271.09 | -5.47 | 89.98 | 0.0956 | 765.0 | 651.7 | |
| 0 | 4 | 0 | 2 | 3.03 | 269.43 | -7.13 | 98.30 | 0.1259 | 652.0 | 508.0 | |
| 0 | 6 | 0 | 3 | 1.46 | 266.59 | -9.97 | 104.56 | 0.1796 | 945.0 | 722.5 | |
| 0 | 7 | 0 | 3 | 2.75 | 264.78 | -11.78 | 96.19 | 0.2061 | 682.0 | 583.0 | |
| 0 | 6 | 0 | 3 | 1.44 | 264.71 | -11.85 | 102.35 | 0.2111 | 486.0 | 515.5 | |
| 0 | 9 | 0 | 4 | 5.48 | 264.50 | -12.06 | 83.00 | 0.2105 | -891.0 | -690.4 | |
| 0 | 4 | 0 | 2 | 1.61 | 259.30 | -17.26 | 97.73 | 0.3007 | -853.0 | -795.0 | |
| 0 | 6 | 0 | 3 | 5.84 | 255.73 | -20.83 | 84.36 | 0.3571 | -802.0 | -662.0 | |
| 0 | 3 | 0 | 2 | 6.25 | 255.09 | -21.47 | 83.36 | 0.3679 | -561.0 | -473.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
