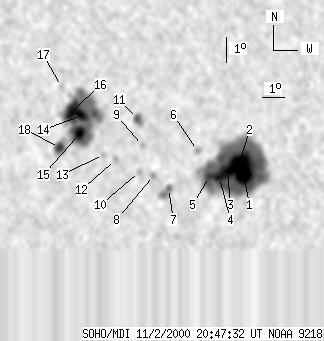

SOHO MDI 2000-11-02 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136 | 791 | 80 | 452 | 19.50 | 250.44 | -26.12 | 56.45 | 0.4978 | 394.1 | 25.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-02 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27 | 443 | 15 | 246 | 18.67 | 254.11 | -22.46 | 54.66 | 0.4455 | 2091.5 | 625.4 | |
| 26 | -1 | 15 | -1 | 19.14 | 253.86 | -22.70 | 54.02 | 0.4524 | 1608.0 | 999999 | |
| 12 | -1 | 7 | -1 | 18.77 | 253.38 | -23.18 | 55.23 | 0.4555 | 1289.1 | 999999 | |
| 11 | -1 | 6 | -1 | 18.52 | 253.07 | -23.49 | 56.03 | 0.4577 | 1135.6 | 999999 | |
| 5 | -1 | 3 | -1 | 18.55 | 252.62 | -23.94 | 56.43 | 0.4637 | 597.1 | 999999 | |
| 0 | 5 | 0 | 3 | 19.57 | 251.92 | -24.64 | 55.22 | 0.4802 | 411.0 | 407.1 | |
| 0 | 18 | 0 | 10 | 18.02 | 250.87 | -25.69 | 59.05 | 0.4828 | 365.0 | -435.5 | |
| 0 | 4 | 0 | 2 | 18.51 | 250.11 | -26.45 | 58.78 | 0.4960 | 469.0 | 329.2 | |
| 0 | 4 | 0 | 2 | 19.69 | 249.40 | -27.16 | 57.28 | 0.5130 | 400.0 | 384.2 | |
| 0 | 3 | 0 | 2 | 18.65 | 249.45 | -27.11 | 59.07 | 0.5054 | -626.0 | -464.1 | |
| 4 | 12 | 2 | 7 | 20.76 | 248.96 | -27.60 | 55.81 | 0.5258 | -879.6 | -666.2 | |
| 0 | 5 | 0 | 3 | 19.09 | 248.26 | -28.30 | 59.22 | 0.5235 | -561.0 | -526.0 | |
| 0 | 4 | 0 | 2 | 19.27 | 247.67 | -28.89 | 59.36 | 0.5322 | -665.0 | -539.7 | |
| 8 | 289 | 5 | 173 | 20.80 | 246.32 | -30.24 | 57.81 | 0.5585 | -1642.6 | -760.4 | |
| 11 | -14 | 7 | -14 | 20.07 | 246.38 | -30.18 | 58.95 | 0.5533 | -1587.1 | 999999 | |
| 24 | -14 | 15 | -14 | 20.98 | 245.85 | -30.71 | 57.85 | 0.5655 | -999.4 | 999999 | |
| 0 | 4 | 0 | 2 | 21.93 | 245.09 | -31.47 | 56.89 | 0.5805 | -649.0 | -524.5 | |
| 8 | -14 | 5 | -14 | 19.48 | 245.56 | -31.01 | 60.49 | 0.5602 | -944.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
