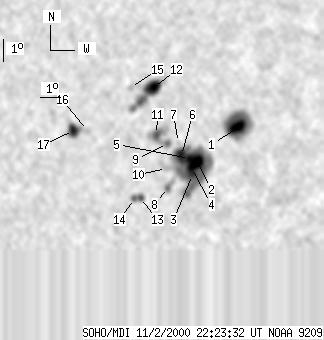

SOHO MDI 2000-11-02 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101 | 468 | 64 | 300 | -23.10 | 305.01 | 29.33 | 225.09 | 0.6381 | -845.8 | -447.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-02 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16 | 91 | 11 | 59 | -22.53 | 307.54 | 31.86 | 228.05 | 0.6579 | -1235.6 | -636.6 | |
| 19 | 195 | 12 | 127 | -23.94 | 305.95 | 30.27 | 224.97 | 0.6541 | -1090.5 | -416.3 | |
| 5 | -2 | 3 | -2 | -24.50 | 305.85 | 30.17 | 224.23 | 0.6580 | -531.4 | 999999 | |
| -2 | -2 | -2 | -2 | -24.19 | 305.72 | 30.04 | 224.47 | 0.6542 | 999999 | 999999 | |
| 5 | -2 | 3 | -2 | -23.79 | 305.52 | 29.84 | 224.76 | 0.6489 | -1400.1 | 999999 | |
| 13 | -2 | 9 | -2 | -23.65 | 305.10 | 29.42 | 224.55 | 0.6437 | -1271.7 | 999999 | |
| 0 | 2 | 0 | 1 | -23.07 | 304.81 | 29.13 | 224.97 | 0.6360 | -499.0 | -584.3 | |
| 0 | 13 | 0 | 9 | -25.03 | 304.77 | 29.09 | 222.63 | 0.6528 | -465.0 | -367.8 | |
| 3 | 48 | 2 | 31 | -23.10 | 304.29 | 28.61 | 224.45 | 0.6313 | -762.8 | -772.6 | |
| 0 | 12 | 0 | 7 | -24.19 | 304.51 | 28.83 | 223.36 | 0.6430 | -519.0 | -462.2 | |
| 6 | -9 | 4 | -9 | -22.69 | 303.68 | 27.99 | 224.36 | 0.6218 | -1108.3 | 999999 | |
| 19 | 63 | 11 | 39 | -20.66 | 303.11 | 27.43 | 226.34 | 0.5980 | -1146.3 | -681.6 | |
| 3 | 14 | 2 | 9 | -25.43 | 303.56 | 27.88 | 221.03 | 0.6457 | 363.4 | 356.8 | |
| 2 | -13 | 1 | -13 | -25.46 | 303.28 | 27.60 | 220.72 | 0.6435 | 635.9 | 999999 | |
| 0 | 3 | 0 | 2 | -20.63 | 302.04 | 26.36 | 225.30 | 0.5869 | -529.0 | -491.4 | |
| 0 | 4 | 0 | 2 | -22.41 | 300.40 | 24.72 | 221.30 | 0.5881 | 492.0 | 501.0 | |
| 10 | 23 | 6 | 14 | -22.39 | 299.76 | 24.08 | 220.60 | 0.5819 | 1074.5 | 753.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
