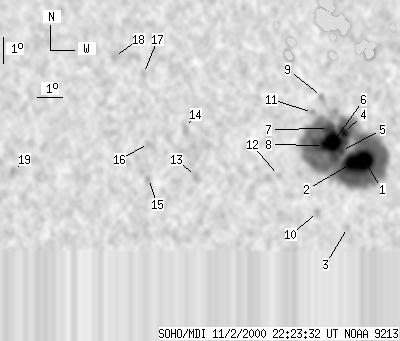

SOHO MDI 2000-11-02 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105 | 769 | 54 | 381 | 2.56 | 271.80 | -3.88 | 114.50 | 0.0748 | 1889.4 | 695.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-02 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29 | 688 | 14 | 341 | 2.21 | 273.12 | -2.57 | 126.32 | 0.0558 | 2184.2 | 759.9 | |
| 29 | -1 | 15 | -1 | 2.09 | 272.61 | -3.07 | 123.13 | 0.0642 | 1883.7 | 999999 | |
| 0 | 5 | 0 | 2 | -0.38 | 272.46 | -3.22 | 144.20 | 0.0965 | 627.0 | 446.2 | |
| 7 | -1 | 4 | -1 | 3.28 | 272.30 | -3.38 | 103.47 | 0.0608 | 1647.0 | 999999 | |
| 4 | -1 | 2 | -1 | 2.59 | 272.23 | -3.45 | 113.51 | 0.0660 | 1649.8 | 999999 | |
| 27 | -1 | 14 | -1 | 2.93 | 271.92 | -3.76 | 107.07 | 0.0689 | 2116.4 | 999999 | |
| 3 | -1 | 2 | -1 | 3.43 | 271.72 | -3.96 | 99.40 | 0.0702 | 1413.2 | 999999 | |
| 6 | -1 | 3 | -1 | 2.78 | 271.53 | -4.15 | 107.52 | 0.0762 | 1640.4 | 999999 | |
| 0 | 5 | 0 | 3 | 4.66 | 271.45 | -4.24 | 82.21 | 0.0747 | 632.0 | 453.3 | |
| 0 | 7 | 0 | 3 | 0.19 | 271.31 | -4.38 | 131.62 | 0.1026 | 548.0 | 433.3 | |
| 0 | 5 | 0 | 2 | 4.04 | 271.10 | -4.58 | 90.48 | 0.0801 | 703.0 | 597.6 | |
| 0 | 4 | 0 | 2 | 1.61 | 269.80 | -5.89 | 112.74 | 0.1117 | -292.0 | -273.9 | |
| 0 | 10 | 0 | 5 | 1.54 | 266.57 | -9.11 | 105.42 | 0.1649 | 925.0 | 663.3 | |
| 0 | 10 | 0 | 5 | 3.42 | 266.17 | -9.51 | 93.73 | 0.1661 | 486.0 | 567.0 | |
| 0 | 6 | 0 | 3 | 1.44 | 264.74 | -10.94 | 103.33 | 0.1960 | 541.0 | 442.6 | |
| 0 | 8 | 0 | 4 | 2.79 | 264.73 | -10.95 | 96.46 | 0.1919 | 588.0 | 485.8 | |
| 0 | 6 | 0 | 3 | 5.48 | 264.49 | -11.19 | 82.47 | 0.1957 | -706.0 | -693.4 | |
| 0 | 8 | 0 | 4 | 6.12 | 263.33 | -12.35 | 80.15 | 0.2168 | -734.0 | -644.0 | |
| 0 | 7 | 0 | 4 | 1.62 | 259.39 | -16.30 | 98.17 | 0.2846 | -1000.0 | -778.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
