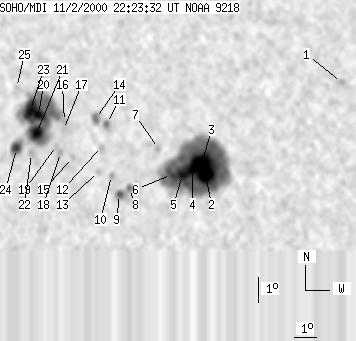

SOHO MDI 2000-11-02 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145 | 807 | 81 | 458 | 19.44 | 250.63 | -25.06 | 55.56 | 0.4841 | 377.9 | 43.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-02 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 22.46 | 259.62 | -16.06 | 38.83 | 0.4096 | 496.0 | 390.1 | |
| 24 | 448 | 13 | 247 | 18.64 | 254.20 | -21.49 | 53.59 | 0.4331 | 2094.7 | 633.6 | |
| 37 | -2 | 20 | -2 | 19.08 | 253.96 | -21.72 | 53.02 | 0.4397 | 1617.8 | 999999 | |
| -3 | -2 | -3 | -2 | 18.83 | 253.60 | -22.08 | 53.92 | 0.4421 | 999999 | 999999 | |
| 15 | -2 | 8 | -2 | 18.62 | 253.19 | -22.49 | 54.78 | 0.4456 | 1101.4 | 999999 | |
| 9 | -2 | 5 | -2 | 18.61 | 252.71 | -22.97 | 55.32 | 0.4517 | 570.1 | 999999 | |
| 0 | 5 | 0 | 3 | 19.62 | 251.98 | -23.70 | 54.17 | 0.4690 | 446.0 | 397.7 | |
| 3 | 33 | 2 | 19 | 18.00 | 250.93 | -24.75 | 58.23 | 0.4703 | 189.5 | -288.0 | |
| 4 | -8 | 2 | -8 | 17.75 | 250.53 | -25.16 | 59.08 | 0.4739 | -776.7 | 999999 | |
| 0 | 4 | 0 | 3 | 18.49 | 250.05 | -25.63 | 58.11 | 0.4852 | 572.0 | 402.7 | |
| 0 | 11 | 0 | 6 | 20.56 | 249.47 | -26.22 | 54.94 | 0.5074 | -832.0 | -556.2 | |
| 0 | 6 | 0 | 3 | 19.63 | 249.41 | -26.28 | 56.62 | 0.5014 | 462.0 | 302.3 | |
| 0 | 4 | 0 | 3 | 18.63 | 249.44 | -26.24 | 58.38 | 0.4941 | -428.0 | -383.6 | |
| 0 | 13 | 0 | 7 | 20.74 | 248.93 | -26.76 | 55.11 | 0.5154 | -1031.0 | -694.0 | |
| 0 | 4 | 0 | 2 | 19.15 | 248.16 | -27.52 | 58.51 | 0.5140 | -550.0 | -473.5 | |
| 0 | 5 | 0 | 3 | 20.57 | 247.52 | -28.16 | 56.58 | 0.5316 | -911.0 | -814.7 | |
| 0 | 2 | 0 | 1 | 20.25 | 247.54 | -28.15 | 57.11 | 0.5292 | -888.0 | -864.2 | |
| 0 | 5 | 0 | 3 | 19.33 | 247.58 | -28.11 | 58.66 | 0.5226 | -545.0 | -489.6 | |
| 0 | 1 | 0 | 1 | 19.60 | 247.34 | -28.34 | 58.37 | 0.5274 | -504.0 | -561.7 | |
| 7 | 229 | 4 | 136 | 20.82 | 246.25 | -29.44 | 57.18 | 0.5488 | -1633.0 | -791.4 | |
| 13 | -20 | 8 | -20 | 20.05 | 246.31 | -29.37 | 58.39 | 0.5431 | -1497.7 | 999999 | |
| 0 | 6 | 0 | 3 | 19.25 | 246.24 | -29.44 | 59.80 | 0.5391 | -697.0 | -645.3 | |
| 24 | -20 | 14 | -20 | 21.00 | 245.83 | -29.86 | 57.18 | 0.5552 | -1017.6 | 999999 | |
| 9 | 24 | 5 | 14 | 19.42 | 245.50 | -30.18 | 60.02 | 0.5495 | -930.0 | -647.4 | |
| 0 | 3 | 0 | 2 | 21.86 | 244.96 | -30.73 | 56.45 | 0.5712 | -574.0 | -540.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
