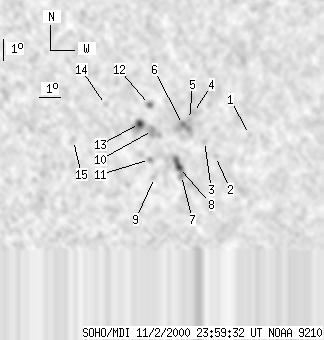

SOHO MDI 2000-11-02 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 135 | 4 | 81 | -27.35 | 290.36 | 15.56 | 204.61 | 0.5737 | 787.9 | 653.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-02 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -27.31 | 294.21 | 19.41 | 209.71 | 0.5980 | 495.0 | 464.1 | |
| 0 | 3 | 0 | 2 | -28.28 | 292.82 | 18.02 | 207.10 | 0.6001 | 477.0 | 368.5 | |
| 0 | 4 | 0 | 2 | -27.58 | 292.20 | 17.40 | 206.91 | 0.5878 | 511.0 | 400.0 | |
| 0 | 4 | 0 | 3 | -26.26 | 291.50 | 16.69 | 207.14 | 0.5670 | 875.0 | 833.1 | |
| 0 | 4 | 0 | 3 | -26.57 | 291.36 | 16.56 | 206.68 | 0.5700 | 964.0 | 894.5 | |
| 0 | 24 | 0 | 14 | -26.79 | 291.08 | 16.28 | 206.10 | 0.5709 | 1040.0 | 863.6 | |
| 0 | 8 | 0 | 5 | -29.11 | 291.40 | 16.60 | 204.60 | 0.6017 | 397.0 | 409.4 | |
| 3 | 20 | 2 | 12 | -28.74 | 291.25 | 16.44 | 204.70 | 0.5962 | 614.3 | 469.0 | |
| 0 | 4 | 0 | 2 | -29.18 | 290.17 | 15.37 | 202.96 | 0.5956 | -371.0 | -322.5 | |
| 0 | 20 | 0 | 12 | -27.03 | 289.77 | 14.97 | 204.08 | 0.5660 | 1060.0 | 860.1 | |
| 0 | 4 | 0 | 2 | -28.35 | 289.82 | 15.02 | 203.12 | 0.5831 | 772.0 | 645.0 | |
| 0 | 7 | 0 | 4 | -25.86 | 289.48 | 14.68 | 204.64 | 0.5491 | 883.0 | 636.4 | |
| 4 | 21 | 2 | 12 | -26.71 | 289.15 | 14.34 | 203.46 | 0.5581 | 1240.5 | 857.5 | |
| 0 | 3 | 0 | 2 | -25.83 | 287.54 | 12.74 | 201.76 | 0.5375 | -418.0 | -325.0 | |
| 0 | 6 | 0 | 4 | -27.42 | 286.30 | 11.50 | 198.75 | 0.5528 | 769.0 | 587.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
