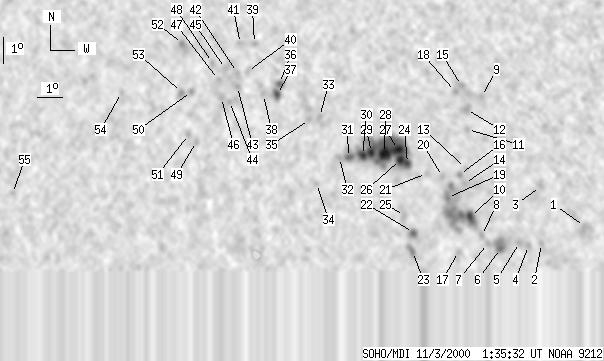

SOHO MDI 2000-11-03 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48 | 615 | 25 | 309 | 9.48 | 269.35 | -4.58 | 39.92 | 0.1229 | 834.0 | 355.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 21 | 0 | 10 | 7.16 | 276.81 | 2.88 | 317.11 | 0.0737 | 677.0 | 493.8 | |
| 0 | 4 | 0 | 2 | 6.51 | 275.14 | 1.21 | 333.56 | 0.0475 | 931.0 | 796.0 | |
| 0 | 9 | 0 | 4 | 8.70 | 275.11 | 1.18 | 345.81 | 0.0835 | 799.0 | 593.3 | |
| 0 | 4 | 0 | 2 | 6.43 | 274.64 | 0.71 | 343.26 | 0.0430 | 644.0 | 626.7 | |
| 0 | 4 | 0 | 2 | 6.55 | 274.29 | 0.36 | 351.69 | 0.0437 | 823.0 | 744.5 | |
| 0 | 20 | 0 | 10 | 6.31 | 273.55 | -0.37 | 9.43 | 0.0397 | 1320.0 | 1125.3 | |
| 0 | 5 | 0 | 2 | 6.51 | 273.05 | -0.88 | 19.75 | 0.0452 | 813.0 | 751.1 | |
| 0 | 5 | 0 | 3 | 6.81 | 272.82 | -1.11 | 21.95 | 0.0517 | 771.0 | 628.1 | |
| 0 | 4 | 0 | 2 | 12.19 | 272.80 | -1.13 | 7.76 | 0.1430 | 708.0 | 600.4 | |
| 5 | 86 | 3 | 43 | 7.55 | 272.39 | -1.54 | 23.76 | 0.0664 | 1142.7 | 603.9 | |
| 0 | 4 | 0 | 2 | 10.91 | 272.25 | -1.67 | 13.54 | 0.1229 | 840.0 | 706.6 | |
| 0 | 10 | 0 | 5 | 11.68 | 272.21 | -1.71 | 12.49 | 0.1361 | 849.0 | 829.7 | |
| 0 | 4 | 0 | 2 | 9.40 | 272.18 | -1.74 | 17.92 | 0.0979 | 437.0 | 318.0 | |
| 0 | 4 | 0 | 2 | 8.82 | 272.15 | -1.78 | 20.35 | 0.0885 | 864.0 | 792.1 | |
| 0 | 6 | 0 | 3 | 12.61 | 272.01 | -1.92 | 12.41 | 0.1527 | 760.0 | 730.3 | |
| 0 | 4 | 0 | 2 | 9.16 | 271.95 | -1.97 | 20.98 | 0.0954 | 789.0 | 682.2 | |
| 0 | 11 | 0 | 6 | 6.20 | 271.93 | -2.00 | 43.17 | 0.0509 | -623.0 | -506.7 | |
| 0 | 4 | 0 | 2 | 12.38 | 271.77 | -2.15 | 14.26 | 0.1497 | 802.0 | 775.2 | |
| 0 | 37 | 0 | 18 | 8.28 | 271.49 | -2.44 | 29.87 | 0.0848 | 1080.0 | 948.2 | |
| 0 | 3 | 0 | 2 | 9.09 | 271.29 | -2.64 | 27.48 | 0.0989 | 616.0 | 521.3 | |
| 0 | 6 | 0 | 3 | 9.20 | 270.66 | -3.26 | 32.15 | 0.1060 | 601.0 | 469.0 | |
| 0 | 9 | 0 | 5 | 6.92 | 270.18 | -3.75 | 52.54 | 0.0821 | -815.0 | -734.9 | |
| 0 | 9 | 0 | 5 | 6.19 | 270.14 | -3.78 | 60.58 | 0.0756 | -1012.0 | -759.4 | |
| 3 | 195 | 2 | 97 | 9.58 | 269.92 | -4.01 | 35.66 | 0.1188 | 1087.5 | 706.6 | |
| 0 | 8 | 0 | 4 | 7.57 | 269.82 | -4.10 | 49.24 | 0.0941 | 616.0 | 528.3 | |
| 6 | -24 | 3 | -24 | 9.74 | 269.64 | -4.28 | 36.71 | 0.1237 | 1443.5 | 999999 | |
| 7 | -24 | 3 | -24 | 10.12 | 269.56 | -4.37 | 35.41 | 0.1300 | 1484.2 | 999999 | |
| 14 | -24 | 7 | -24 | 9.96 | 269.01 | -4.91 | 39.38 | 0.1336 | 1523.2 | 999999 | |
| 4 | -24 | 2 | -24 | 10.00 | 268.50 | -5.42 | 41.99 | 0.1398 | 1246.8 | 999999 | |
| 5 | -24 | 3 | -24 | 9.88 | 268.15 | -5.77 | 44.35 | 0.1425 | 1177.4 | 999999 | |
| 0 | 11 | 0 | 5 | 9.80 | 267.60 | -6.32 | 47.32 | 0.1483 | 1186.0 | 735.4 | |
| 0 | 6 | 0 | 3 | 9.80 | 267.25 | -6.68 | 48.86 | 0.1528 | 437.0 | 353.9 | |
| 0 | 4 | 0 | 2 | 11.38 | 266.42 | -7.50 | 45.09 | 0.1816 | -691.0 | -475.5 | |
| 0 | 4 | 0 | 2 | 8.78 | 266.37 | -7.56 | 57.57 | 0.1548 | 783.0 | 657.9 | |
| 0 | 6 | 0 | 3 | 11.26 | 266.03 | -7.90 | 47.01 | 0.1850 | 544.0 | 464.9 | |
| 0 | 12 | 0 | 6 | 12.64 | 264.79 | -9.13 | 45.96 | 0.2164 | -1221.0 | -826.8 | |
| 4 | 10 | 2 | 5 | 12.21 | 264.73 | -9.20 | 47.65 | 0.2123 | -1183.3 | -934.3 | |
| 0 | 4 | 0 | 2 | 12.21 | 264.17 | -9.76 | 49.31 | 0.2194 | -908.0 | -836.0 | |
| 0 | 3 | 0 | 2 | 14.19 | 263.73 | -10.20 | 44.18 | 0.2474 | -898.0 | -800.1 | |
| 0 | 7 | 0 | 4 | 13.09 | 263.49 | -10.43 | 48.17 | 0.2378 | -735.0 | -492.4 | |
| 0 | 3 | 0 | 1 | 14.18 | 263.16 | -10.76 | 45.71 | 0.2541 | -697.0 | -718.2 | |
| 0 | 3 | 0 | 2 | 13.05 | 263.09 | -10.83 | 49.35 | 0.2424 | -781.0 | -767.8 | |
| 0 | 5 | 0 | 3 | 12.51 | 263.12 | -10.81 | 51.09 | 0.2363 | -931.0 | -816.0 | |
| 0 | 3 | 0 | 2 | 11.92 | 262.82 | -11.10 | 53.85 | 0.2345 | -1061.0 | -963.6 | |
| 0 | 9 | 0 | 5 | 13.20 | 262.60 | -11.32 | 50.09 | 0.2503 | -832.0 | -690.0 | |
| 0 | 6 | 0 | 3 | 12.07 | 262.49 | -11.43 | 54.09 | 0.2404 | -898.0 | -882.8 | |
| 0 | 3 | 0 | 1 | 12.77 | 262.34 | -11.58 | 52.10 | 0.2493 | -623.0 | -687.8 | |
| 0 | 5 | 0 | 2 | 13.43 | 262.07 | -11.86 | 50.65 | 0.2596 | -799.0 | -697.0 | |
| 0 | 3 | 0 | 2 | 10.35 | 261.56 | -12.36 | 62.24 | 0.2391 | -903.0 | -738.3 | |
| 0 | 4 | 0 | 2 | 12.29 | 261.28 | -12.65 | 55.98 | 0.2593 | -827.0 | -857.9 | |
| 0 | 6 | 0 | 3 | 10.62 | 261.23 | -12.69 | 61.86 | 0.2461 | -753.0 | -675.1 | |
| 0 | 10 | 0 | 5 | 14.15 | 260.81 | -13.11 | 51.24 | 0.2834 | -845.0 | -833.6 | |
| 0 | 6 | 0 | 3 | 12.24 | 260.87 | -13.05 | 56.92 | 0.2646 | -855.0 | -711.3 | |
| 0 | 2 | 0 | 1 | 12.20 | 258.44 | -15.49 | 61.16 | 0.2993 | -602.0 | -551.0 | |
| 0 | 4 | 0 | 2 | 8.20 | 254.19 | -19.73 | 77.20 | 0.3443 | -475.0 | -414.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
