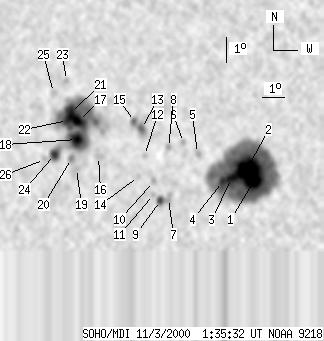

SOHO MDI 2000-11-03 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145 | 921 | 81 | 517 | 19.56 | 250.45 | -23.47 | 53.63 | 0.4655 | 367.6 | 10.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25 | 485 | 14 | 264 | 18.60 | 254.40 | -19.53 | 51.21 | 0.4082 | 2126.8 | 612.5 | |
| 42 | -1 | 23 | -1 | 19.15 | 254.07 | -19.85 | 50.55 | 0.4173 | 1665.2 | 999999 | |
| 10 | -1 | 5 | -1 | 18.70 | 253.44 | -20.49 | 52.26 | 0.4211 | 1295.9 | 999999 | |
| 4 | -1 | 2 | -1 | 18.57 | 253.06 | -20.86 | 52.98 | 0.4247 | 956.8 | 999999 | |
| 0 | 6 | 0 | 3 | 19.66 | 251.82 | -22.11 | 52.35 | 0.4495 | 628.0 | 445.0 | |
| 0 | 5 | 0 | 3 | 20.08 | 251.13 | -22.79 | 52.34 | 0.4616 | 641.0 | 455.4 | |
| 0 | 9 | 0 | 5 | 17.83 | 250.80 | -23.13 | 56.96 | 0.4479 | -364.0 | -332.5 | |
| 0 | 6 | 0 | 3 | 19.86 | 250.50 | -23.43 | 53.42 | 0.4676 | 576.0 | 376.7 | |
| 4 | 8 | 2 | 4 | 17.75 | 250.46 | -23.47 | 57.48 | 0.4517 | -756.0 | -625.2 | |
| 0 | 5 | 0 | 3 | 18.49 | 250.04 | -23.88 | 56.45 | 0.4627 | 594.0 | 402.5 | |
| 0 | 3 | 0 | 2 | 17.97 | 250.12 | -23.81 | 57.37 | 0.4579 | -501.0 | -387.4 | |
| 0 | 4 | 0 | 2 | 19.51 | 249.48 | -24.45 | 55.10 | 0.4776 | 571.0 | 457.6 | |
| 3 | 33 | 2 | 19 | 20.59 | 249.16 | -24.76 | 53.49 | 0.4899 | -1053.4 | -660.1 | |
| 0 | 3 | 0 | 2 | 18.67 | 249.34 | -24.58 | 56.79 | 0.4730 | -477.0 | -366.0 | |
| 3 | -13 | 2 | -13 | 20.86 | 248.80 | -25.13 | 53.37 | 0.4965 | -725.9 | 999999 | |
| 0 | 9 | 0 | 5 | 19.41 | 247.42 | -26.51 | 57.19 | 0.5030 | -680.0 | -610.5 | |
| 11 | 313 | 6 | 183 | 20.78 | 246.24 | -27.69 | 55.82 | 0.5273 | -1637.0 | -710.1 | |
| 15 | -17 | 9 | -17 | 20.06 | 246.28 | -27.64 | 57.01 | 0.5217 | -1511.5 | 999999 | |
| 0 | 12 | 0 | 7 | 18.90 | 246.50 | -27.43 | 58.85 | 0.5113 | -765.0 | -570.6 | |
| 0 | 7 | 0 | 4 | 19.29 | 246.20 | -27.73 | 58.40 | 0.5177 | -869.0 | -759.7 | |
| 21 | -17 | 12 | -17 | 21.13 | 245.79 | -28.13 | 55.61 | 0.5351 | -1069.6 | 999999 | |
| -21 | -17 | -21 | -17 | 20.80 | 245.72 | -28.21 | 56.21 | 0.5338 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | 22.41 | 245.32 | -28.60 | 53.91 | 0.5498 | -699.0 | -635.8 | |
| 7 | -17 | 4 | -17 | 19.43 | 245.38 | -28.54 | 58.81 | 0.5289 | -965.2 | 999999 | |
| 0 | 6 | 0 | 4 | 21.91 | 244.82 | -29.10 | 55.13 | 0.5522 | -640.0 | -535.7 | |
| 0 | 4 | 0 | 2 | 19.21 | 244.96 | -28.96 | 59.49 | 0.5329 | -379.0 | -377.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
