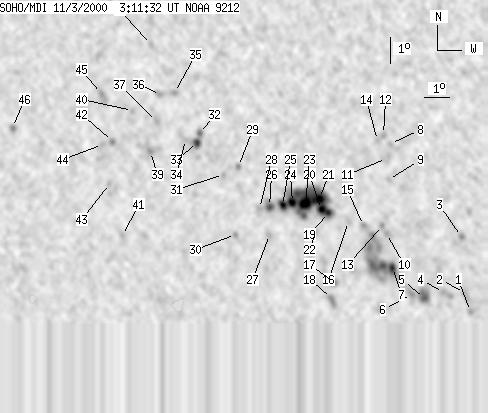

SOHO MDI 2000-11-03 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45 | 615 | 23 | 309 | 9.58 | 269.08 | -3.96 | 35.39 | 0.1180 | 810.8 | 368.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 5.80 | 275.46 | 2.41 | 305.83 | 0.0519 | 723.0 | 710.6 | |
| 0 | 13 | 0 | 6 | 6.54 | 275.23 | 2.19 | 318.63 | 0.0576 | 835.0 | 762.2 | |
| 0 | 6 | 0 | 3 | 8.69 | 275.13 | 2.08 | 336.01 | 0.0887 | 896.0 | 692.9 | |
| 0 | 11 | 0 | 6 | 6.54 | 274.42 | 1.37 | 331.06 | 0.0494 | 817.0 | 713.7 | |
| 0 | 25 | 0 | 12 | 6.31 | 273.68 | 0.64 | 344.21 | 0.0407 | 1216.0 | 1066.3 | |
| 0 | 8 | 0 | 4 | 6.46 | 273.18 | 0.13 | 356.84 | 0.0419 | 976.0 | 762.8 | |
| 4 | 125 | 2 | 62 | 7.50 | 272.44 | -0.60 | 9.92 | 0.0610 | 1311.7 | 732.1 | |
| 0 | 4 | 0 | 2 | 12.30 | 272.35 | -0.69 | 4.72 | 0.1442 | 702.0 | 738.3 | |
| 0 | 5 | 0 | 3 | 10.90 | 272.28 | -0.77 | 6.31 | 0.1202 | 867.0 | 692.1 | |
| 0 | 5 | 0 | 2 | 8.81 | 272.21 | -0.84 | 9.94 | 0.0843 | 750.0 | 686.2 | |
| 0 | 7 | 0 | 4 | 11.71 | 272.20 | -0.85 | 6.22 | 0.1344 | 726.0 | 793.9 | |
| 0 | 6 | 0 | 3 | 12.65 | 272.08 | -0.97 | 6.31 | 0.1507 | 744.0 | 694.5 | |
| 0 | 4 | 0 | 2 | 9.12 | 272.05 | -1.00 | 11.04 | 0.0901 | 722.0 | 690.0 | |
| 0 | 7 | 0 | 3 | 12.41 | 271.84 | -1.20 | 8.05 | 0.1472 | 964.0 | 811.9 | |
| 0 | 5 | 0 | 2 | 9.12 | 271.31 | -1.74 | 18.78 | 0.0934 | 572.0 | 514.7 | |
| 0 | 3 | 0 | 2 | 9.27 | 270.72 | -2.32 | 23.80 | 0.0996 | 577.0 | 469.4 | |
| 0 | 8 | 0 | 4 | 6.92 | 270.16 | -2.89 | 45.20 | 0.0709 | -765.0 | -703.7 | |
| 0 | 12 | 0 | 6 | 6.30 | 270.08 | -2.96 | 52.83 | 0.0648 | -939.0 | -704.9 | |
| 4 | 183 | 2 | 91 | 9.62 | 269.94 | -3.11 | 28.91 | 0.1110 | 1100.0 | 728.3 | |
| 5 | -19 | 2 | -19 | 9.73 | 269.67 | -3.38 | 30.48 | 0.1151 | 1399.1 | 999999 | |
| 4 | -19 | 2 | -19 | 10.16 | 269.58 | -3.46 | 29.26 | 0.1222 | 1349.6 | 999999 | |
| 0 | 9 | 0 | 5 | 8.88 | 269.44 | -3.61 | 36.51 | 0.1050 | 605.0 | 548.2 | |
| 12 | -19 | 6 | -19 | 9.96 | 269.04 | -4.01 | 33.83 | 0.1243 | 1508.1 | 999999 | |
| 6 | -19 | 3 | -19 | 10.00 | 268.53 | -4.52 | 36.88 | 0.1299 | 1105.9 | 999999 | |
| 5 | -19 | 3 | -19 | 9.88 | 268.14 | -4.91 | 39.73 | 0.1325 | 1110.7 | 999999 | |
| 2 | 13 | 1 | 7 | 9.84 | 267.63 | -5.42 | 42.72 | 0.1378 | 1098.5 | 712.4 | |
| 0 | 6 | 0 | 3 | 8.76 | 267.65 | -5.40 | 48.62 | 0.1246 | 698.0 | 576.8 | |
| 0 | 11 | 0 | 5 | 9.76 | 267.24 | -5.81 | 45.10 | 0.1415 | 506.0 | 280.1 | |
| 0 | 4 | 0 | 2 | 11.38 | 266.38 | -6.67 | 41.74 | 0.1718 | -543.0 | -353.8 | |
| 0 | 5 | 0 | 3 | 8.75 | 266.31 | -6.73 | 54.73 | 0.1426 | 613.0 | 564.0 | |
| 0 | 4 | 0 | 2 | 11.06 | 265.79 | -7.25 | 45.39 | 0.1749 | 561.0 | 478.4 | |
| 0 | 8 | 0 | 4 | 12.65 | 264.79 | -8.25 | 43.08 | 0.2060 | -1293.0 | -923.5 | |
| 3 | 9 | 2 | 4 | 12.30 | 264.73 | -8.32 | 44.53 | 0.2026 | -1271.1 | -1114.1 | |
| 0 | 10 | 0 | 5 | 12.41 | 264.24 | -8.80 | 45.72 | 0.2097 | -948.0 | -737.3 | |
| 0 | 5 | 0 | 3 | 14.23 | 263.74 | -9.31 | 41.49 | 0.2378 | -974.0 | -794.8 | |
| 0 | 8 | 0 | 4 | 14.15 | 263.18 | -9.87 | 43.37 | 0.2432 | -848.0 | -714.2 | |
| 0 | 7 | 0 | 4 | 13.09 | 263.06 | -9.99 | 46.94 | 0.2323 | -928.0 | -787.4 | |
| 0 | 5 | 0 | 2 | 16.10 | 262.72 | -10.33 | 39.43 | 0.2725 | -698.0 | -484.3 | |
| 0 | 20 | 0 | 10 | 11.92 | 262.87 | -10.18 | 51.47 | 0.2221 | -1045.0 | -813.2 | |
| 0 | 3 | 0 | 2 | 13.51 | 262.08 | -10.97 | 48.24 | 0.2492 | -773.0 | -703.8 | |
| 0 | 4 | 0 | 2 | 8.66 | 261.86 | -11.18 | 67.03 | 0.2092 | -859.0 | -794.8 | |
| 0 | 5 | 0 | 3 | 12.29 | 261.33 | -11.72 | 53.96 | 0.2466 | -927.0 | -832.0 | |
| 0 | 6 | 0 | 3 | 10.66 | 261.28 | -11.77 | 59.90 | 0.2328 | -755.0 | -697.3 | |
| 0 | 8 | 0 | 4 | 12.17 | 260.93 | -12.12 | 55.24 | 0.2509 | -801.0 | -632.5 | |
| 0 | 17 | 0 | 9 | 14.16 | 260.79 | -12.26 | 49.37 | 0.2725 | -674.0 | -756.8 | |
| 0 | 5 | 0 | 3 | 12.77 | 257.24 | -15.81 | 59.93 | 0.3084 | -933.0 | -724.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
