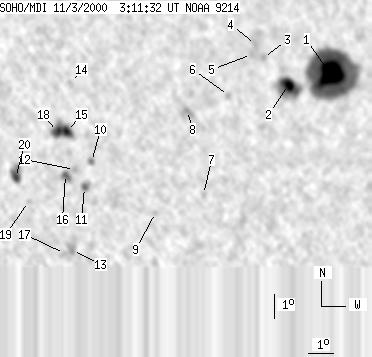

SOHO MDI 2000-11-03 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83 | 519 | 43 | 268 | -10.38 | 276.99 | 3.95 | 196.07 | 0.2709 | -976.6 | -408.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49 | 306 | 25 | 157 | -9.39 | 279.94 | 6.90 | 207.02 | 0.2620 | -1950.5 | -679.0 | |
| 14 | 58 | 7 | 30 | -9.81 | 278.30 | 5.26 | 200.64 | 0.2573 | -1424.1 | -728.7 | |
| 0 | 5 | 0 | 3 | -8.74 | 277.31 | 4.26 | 198.35 | 0.2345 | -713.0 | -536.6 | |
| 0 | 6 | 0 | 3 | -8.22 | 276.99 | 3.95 | 197.75 | 0.2245 | -555.0 | -646.2 | |
| 0 | 4 | 0 | 2 | -8.62 | 276.84 | 3.79 | 196.59 | 0.2301 | -807.0 | -695.9 | |
| 0 | 4 | 0 | 2 | -10.24 | 275.96 | 2.91 | 191.44 | 0.2532 | 391.0 | 316.4 | |
| 0 | 4 | 0 | 2 | -14.20 | 275.01 | 1.96 | 186.04 | 0.3167 | -668.0 | -604.2 | |
| 0 | 12 | 0 | 6 | -10.83 | 274.36 | 1.31 | 184.99 | 0.2593 | -768.0 | -578.1 | |
| 0 | 3 | 0 | 2 | -14.93 | 273.10 | 0.06 | 180.17 | 0.3271 | -547.0 | -382.2 | |
| 0 | 4 | 0 | 2 | -12.87 | 270.58 | -2.47 | 171.79 | 0.2957 | -753.0 | -574.7 | |
| 0 | 8 | 0 | 4 | -13.92 | 270.29 | -2.76 | 171.40 | 0.3138 | -914.0 | -769.3 | |
| 0 | 5 | 0 | 3 | -13.20 | 269.90 | -3.15 | 169.79 | 0.3029 | 599.0 | 528.2 | |
| 0 | 12 | 0 | 6 | -16.49 | 269.77 | -3.28 | 171.13 | 0.3570 | -995.0 | -866.8 | |
| 0 | 6 | 0 | 3 | -9.72 | 269.78 | -3.26 | 166.75 | 0.2460 | 442.0 | 464.4 | |
| 8 | 42 | 4 | 22 | -11.67 | 269.60 | -3.44 | 167.77 | 0.2788 | 1394.6 | 942.3 | |
| 0 | 10 | 0 | 5 | -13.40 | 269.54 | -3.51 | 168.79 | 0.3073 | 1091.0 | 853.8 | |
| 0 | 6 | 0 | 3 | -16.62 | 269.45 | -3.60 | 170.33 | 0.3599 | -708.0 | -630.3 | |
| 7 | -15 | 4 | -15 | -11.67 | 269.25 | -3.80 | 166.55 | 0.2802 | 1360.0 | 999999 | |
| 0 | 3 | 0 | 2 | -14.50 | 268.05 | -5.00 | 165.16 | 0.3307 | 760.0 | 680.5 | |
| 5 | 21 | 3 | 11 | -13.53 | 267.55 | -5.49 | 162.88 | 0.3176 | 1206.8 | 968.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
