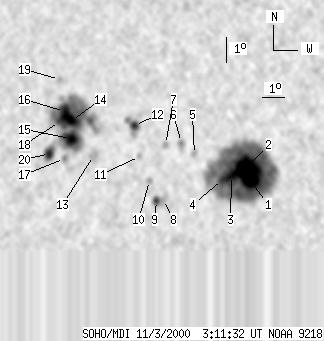

SOHO MDI 2000-11-03 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 156 | 906 | 85 | 504 | 19.51 | 250.49 | -22.56 | 52.70 | 0.4537 | 495.5 | 27.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22 | 490 | 12 | 265 | 18.61 | 254.42 | -18.62 | 49.93 | 0.3972 | 2159.9 | 603.6 | |
| 64 | -1 | 35 | -1 | 19.05 | 254.12 | -18.93 | 49.49 | 0.4051 | 1651.6 | 999999 | |
| -2 | -1 | -2 | -1 | 18.79 | 253.59 | -19.46 | 50.72 | 0.4092 | 999999 | 999999 | |
| 6 | -1 | 3 | -1 | 18.63 | 253.22 | -19.83 | 51.54 | 0.4123 | 994.7 | 999999 | |
| 0 | 6 | 0 | 3 | 19.59 | 251.87 | -21.17 | 51.35 | 0.4375 | 609.0 | 594.1 | |
| 0 | 8 | 0 | 4 | 20.06 | 251.24 | -21.81 | 51.25 | 0.4494 | 663.0 | 506.4 | |
| 0 | 6 | 0 | 3 | 19.96 | 250.54 | -22.50 | 52.22 | 0.4571 | 658.0 | 449.4 | |
| 0 | 10 | 0 | 6 | 17.77 | 250.76 | -22.28 | 56.19 | 0.4365 | -838.0 | -411.1 | |
| 4 | 12 | 2 | 6 | 17.72 | 250.46 | -22.58 | 56.60 | 0.4400 | -871.0 | -549.0 | |
| 0 | 5 | 0 | 3 | 18.51 | 250.05 | -23.00 | 55.50 | 0.4515 | 548.0 | 433.8 | |
| 0 | 3 | 0 | 2 | 19.45 | 249.46 | -23.58 | 54.33 | 0.4663 | 388.0 | 373.5 | |
| 6 | 23 | 3 | 13 | 20.68 | 249.04 | -24.01 | 52.54 | 0.4815 | -1153.6 | -812.1 | |
| 0 | 14 | 0 | 8 | 19.43 | 247.40 | -25.65 | 56.37 | 0.4922 | -887.0 | -671.2 | |
| 11 | 319 | 6 | 185 | 20.80 | 246.15 | -26.90 | 55.11 | 0.5178 | -1622.0 | -688.2 | |
| 15 | -14 | 8 | -14 | 20.08 | 246.24 | -26.81 | 56.27 | 0.5115 | -1546.3 | 999999 | |
| 16 | -14 | 9 | -14 | 21.15 | 245.75 | -27.29 | 54.86 | 0.5251 | -1092.8 | 999999 | |
| 0 | 5 | 0 | 3 | 19.27 | 246.11 | -26.94 | 57.79 | 0.5075 | -776.0 | -779.6 | |
| 4 | -14 | 2 | -14 | 20.74 | 245.60 | -27.45 | 55.67 | 0.5241 | -812.9 | 999999 | |
| 0 | 5 | 0 | 3 | 22.43 | 245.25 | -27.80 | 53.19 | 0.5405 | -747.0 | -612.7 | |
| 8 | -14 | 5 | -14 | 19.45 | 245.39 | -27.66 | 58.07 | 0.5179 | -970.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
