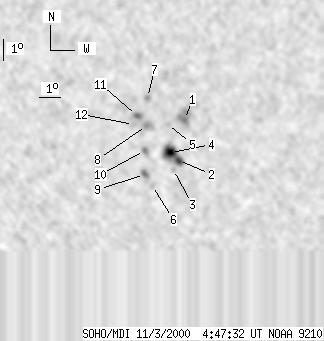

SOHO MDI 2000-11-03 04:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 122 | 10 | 77 | -27.75 | 290.52 | 18.35 | 208.00 | 0.5957 | 535.8 | 472.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 04:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 27 | 0 | 17 | -26.88 | 291.32 | 19.15 | 209.81 | 0.5908 | 1118.0 | 913.1 | |
| 4 | 40 | 3 | 25 | -28.74 | 291.38 | 19.22 | 208.20 | 0.6131 | 680.0 | 253.7 | |
| 0 | 3 | 0 | 2 | -29.14 | 291.23 | 19.06 | 207.66 | 0.6168 | 97.0 | 100.9 | |
| 11 | -2 | 7 | -2 | -28.36 | 290.94 | 18.77 | 207.99 | 0.6058 | 483.9 | 999999 | |
| 0 | 3 | 0 | 2 | -27.08 | 290.58 | 18.41 | 208.68 | 0.5882 | 756.0 | 753.7 | |
| 0 | 3 | 0 | 2 | -29.86 | 290.39 | 18.22 | 206.03 | 0.6201 | -485.0 | -511.0 | |
| 0 | 6 | 0 | 4 | -25.85 | 289.48 | 17.31 | 208.37 | 0.5657 | 725.0 | 576.9 | |
| 0 | 12 | 0 | 7 | -27.11 | 289.63 | 17.46 | 207.42 | 0.5821 | 1023.0 | 847.1 | |
| 0 | 8 | 0 | 5 | -29.34 | 289.92 | 17.75 | 205.88 | 0.6110 | -944.0 | -766.0 | |
| 0 | 8 | 0 | 5 | -28.24 | 289.72 | 17.56 | 206.56 | 0.5965 | 602.0 | 460.8 | |
| 0 | 8 | 0 | 5 | -26.64 | 289.10 | 16.93 | 207.14 | 0.5730 | 1183.0 | 939.9 | |
| 0 | 4 | 0 | 3 | -27.05 | 289.03 | 16.86 | 206.68 | 0.5775 | 938.0 | 802.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
