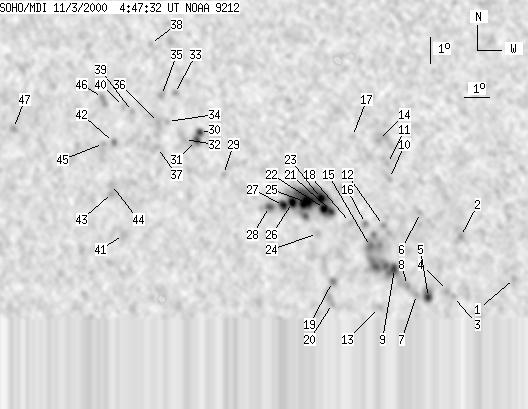

SOHO MDI 2000-11-03 04:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46 | 613 | 23 | 308 | 9.72 | 268.95 | -3.21 | 29.35 | 0.1130 | 822.1 | 335.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 04:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 7.05 | 277.15 | 4.98 | 301.28 | 0.1014 | 731.0 | 585.6 | |
| 0 | 6 | 0 | 3 | 8.68 | 275.07 | 2.90 | 328.20 | 0.0953 | 792.0 | 698.1 | |
| 0 | 3 | 0 | 2 | 6.37 | 274.78 | 2.61 | 311.68 | 0.0609 | 708.0 | 606.6 | |
| 0 | 5 | 0 | 3 | 6.60 | 274.55 | 2.38 | 317.06 | 0.0608 | 905.0 | 775.4 | |
| 4 | 19 | 2 | 10 | 6.34 | 273.81 | 1.64 | 324.29 | 0.0490 | 1327.7 | 1060.8 | |
| 0 | 4 | 0 | 2 | 9.61 | 273.51 | 1.34 | 346.55 | 0.0999 | 674.0 | 597.7 | |
| 0 | 10 | 0 | 5 | 6.45 | 273.35 | 1.18 | 333.86 | 0.0466 | 670.0 | 643.6 | |
| 0 | 18 | 0 | 9 | 6.80 | 273.00 | 0.83 | 343.21 | 0.0501 | 797.0 | 715.3 | |
| 3 | 57 | 2 | 28 | 7.45 | 272.50 | 0.33 | 354.52 | 0.0597 | 1298.2 | 736.6 | |
| 0 | 3 | 0 | 1 | 10.93 | 272.30 | 0.13 | 358.89 | 0.1201 | 866.0 | 825.6 | |
| 0 | 9 | 0 | 4 | 11.51 | 272.22 | 0.06 | 359.57 | 0.1302 | 716.0 | 753.3 | |
| 0 | 19 | 0 | 9 | 9.11 | 272.07 | -0.10 | 1.12 | 0.0884 | 773.0 | 667.5 | |
| 0 | 6 | 0 | 3 | 5.95 | 271.91 | -0.25 | 7.62 | 0.0334 | -400.0 | -454.0 | |
| 0 | 21 | 0 | 10 | 12.41 | 271.87 | -0.30 | 2.00 | 0.1458 | 1043.0 | 741.0 | |
| 0 | 45 | 0 | 23 | 8.30 | 271.56 | -0.60 | 8.05 | 0.0750 | 1083.0 | 962.0 | |
| 0 | 4 | 0 | 2 | 9.19 | 271.37 | -0.80 | 8.79 | 0.0908 | 642.0 | 539.4 | |
| 0 | 5 | 0 | 3 | 12.56 | 270.85 | -1.32 | 8.67 | 0.1501 | 673.0 | 531.2 | |
| 0 | 4 | 0 | 2 | 9.23 | 270.78 | -1.39 | 14.86 | 0.0935 | 604.0 | 453.0 | |
| 0 | 7 | 0 | 4 | 6.95 | 270.09 | -2.08 | 35.52 | 0.0622 | -907.0 | -698.8 | |
| 0 | 19 | 0 | 9 | 6.10 | 270.10 | -2.07 | 45.28 | 0.0508 | -780.0 | -548.6 | |
| 3 | 179 | 1 | 89 | 9.65 | 270.04 | -2.13 | 20.62 | 0.1045 | 1041.1 | 731.0 | |
| 5 | -21 | 3 | -21 | 9.77 | 269.76 | -2.40 | 22.58 | 0.1081 | 1314.7 | 999999 | |
| 5 | -21 | 3 | -21 | 10.15 | 269.64 | -2.52 | 22.22 | 0.1152 | 1258.3 | 999999 | |
| 0 | 6 | 0 | 3 | 8.80 | 269.50 | -2.67 | 29.13 | 0.0950 | 707.0 | 606.5 | |
| 13 | -21 | 6 | -21 | 10.00 | 269.06 | -3.11 | 27.32 | 0.1169 | 1486.5 | 999999 | |
| 5 | -21 | 2 | -21 | 9.99 | 268.51 | -3.66 | 31.27 | 0.1216 | 1226.0 | 999999 | |
| 4 | -21 | 2 | -21 | 9.88 | 268.16 | -4.01 | 34.18 | 0.1232 | 1107.7 | 999999 | |
| 0 | 17 | 0 | 9 | 9.83 | 267.61 | -4.56 | 37.84 | 0.1282 | 1114.0 | 698.1 | |
| 0 | 4 | 0 | 2 | 11.06 | 265.78 | -6.39 | 41.77 | 0.1646 | 495.0 | 591.2 | |
| 2 | 26 | 1 | 13 | 12.68 | 264.79 | -7.38 | 39.79 | 0.1967 | -991.2 | -895.8 | |
| 2 | -30 | 1 | -30 | 12.37 | 264.68 | -7.49 | 41.27 | 0.1939 | -1330.0 | 999999 | |
| 0 | 9 | 0 | 5 | 12.41 | 264.20 | -7.97 | 42.88 | 0.1998 | -888.0 | -799.0 | |
| 0 | 5 | 0 | 2 | 14.20 | 263.74 | -8.43 | 38.81 | 0.2277 | -878.0 | -736.4 | |
| 0 | 4 | 0 | 2 | 13.10 | 263.50 | -8.67 | 42.92 | 0.2165 | -794.0 | -682.6 | |
| 0 | 10 | 0 | 5 | 14.11 | 263.22 | -8.94 | 40.70 | 0.2323 | -835.0 | -638.5 | |
| 0 | 7 | 0 | 4 | 13.06 | 263.14 | -9.02 | 44.20 | 0.2202 | -803.0 | -762.6 | |
| 0 | 11 | 0 | 6 | 12.08 | 263.14 | -9.03 | 47.56 | 0.2089 | -991.0 | -896.2 | |
| 0 | 4 | 0 | 2 | 16.15 | 262.69 | -9.48 | 36.96 | 0.2643 | -610.0 | -520.0 | |
| 0 | 5 | 0 | 2 | 13.47 | 262.09 | -10.08 | 45.98 | 0.2379 | -840.0 | -697.1 | |
| 0 | 5 | 0 | 3 | 13.66 | 261.72 | -10.45 | 46.40 | 0.2446 | -630.0 | -479.2 | |
| 0 | 10 | 0 | 5 | 8.70 | 261.90 | -10.27 | 65.07 | 0.1953 | -879.0 | -689.0 | |
| 0 | 4 | 0 | 2 | 12.26 | 261.37 | -10.79 | 51.86 | 0.2338 | -1069.0 | -866.9 | |
| 0 | 10 | 0 | 5 | 10.32 | 261.41 | -10.76 | 59.05 | 0.2152 | -766.0 | -693.3 | |
| 0 | 7 | 0 | 4 | 10.63 | 261.36 | -10.81 | 57.93 | 0.2186 | -897.0 | -772.9 | |
| 0 | 4 | 0 | 2 | 12.21 | 260.98 | -11.19 | 52.99 | 0.2387 | -705.0 | -704.7 | |
| 0 | 12 | 0 | 6 | 14.01 | 260.85 | -11.32 | 47.59 | 0.2591 | -871.0 | -752.8 | |
| 0 | 6 | 0 | 3 | 12.74 | 257.31 | -14.86 | 58.53 | 0.2947 | -883.0 | -730.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
