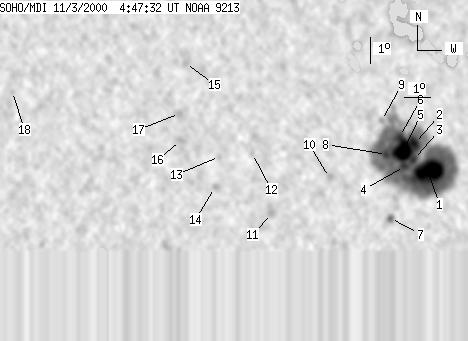

SOHO MDI 2000-11-03 04:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124 | 748 | 61 | 371 | 2.56 | 271.81 | -0.36 | 177.44 | 0.0357 | 1860.2 | 686.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 04:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53 | 684 | 26 | 339 | 2.11 | 272.88 | 0.71 | 199.89 | 0.0366 | 2120.0 | 748.2 | |
| 14 | -1 | 7 | -1 | 3.18 | 272.34 | 0.17 | 190.94 | 0.0158 | 1515.6 | 999999 | |
| 5 | -1 | 3 | -1 | 2.57 | 272.30 | 0.13 | 185.04 | 0.0264 | 1575.7 | 999999 | |
| 6 | -1 | 3 | -1 | 2.30 | 271.95 | -0.21 | 173.10 | 0.0312 | 1449.6 | 999999 | |
| 37 | -1 | 18 | -1 | 2.91 | 271.92 | -0.25 | 167.65 | 0.0207 | 2056.4 | 999999 | |
| 5 | -1 | 2 | -1 | 3.45 | 271.76 | -0.41 | 146.51 | 0.0129 | 1493.0 | 999999 | |
| 0 | 7 | 0 | 3 | 0.29 | 271.42 | -0.75 | 168.71 | 0.0674 | 942.0 | 748.2 | |
| 4 | -1 | 2 | -1 | 2.76 | 271.26 | -0.91 | 145.25 | 0.0279 | 1364.4 | 999999 | |
| 0 | 4 | 0 | 2 | 4.07 | 271.07 | -1.10 | 89.93 | 0.0193 | 680.0 | 557.2 | |
| 0 | 7 | 0 | 4 | 1.87 | 269.07 | -3.10 | 125.26 | 0.0666 | -564.0 | -368.7 | |
| 0 | 13 | 0 | 6 | 0.47 | 266.83 | -5.34 | 123.86 | 0.1126 | 735.0 | 469.4 | |
| 0 | 3 | 0 | 2 | 2.78 | 266.09 | -6.08 | 101.82 | 0.1086 | 759.0 | 642.5 | |
| 0 | 4 | 0 | 2 | 2.65 | 264.81 | -7.36 | 100.69 | 0.1308 | 341.0 | 312.0 | |
| 0 | 5 | 0 | 3 | 1.45 | 264.62 | -7.55 | 108.90 | 0.1394 | 552.0 | 520.6 | |
| 0 | 4 | 0 | 2 | 6.21 | 263.45 | -8.72 | 75.75 | 0.1563 | -974.0 | -891.3 | |
| 0 | 7 | 0 | 3 | 3.25 | 263.29 | -8.88 | 94.97 | 0.1554 | -918.0 | -740.9 | |
| 0 | 7 | 0 | 3 | 4.29 | 263.24 | -8.93 | 88.25 | 0.1556 | -764.0 | -627.7 | |
| 0 | 3 | 0 | 2 | 5.04 | 256.62 | -15.54 | 85.82 | 0.2689 | -657.0 | -565.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
