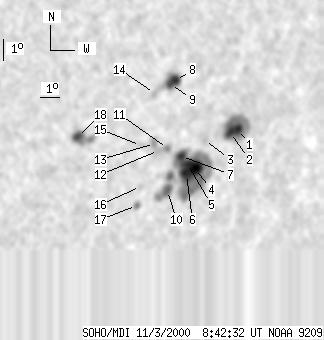

SOHO MDI 2000-11-03 08:42:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84 | 486 | 57 | 336 | -23.38 | 305.28 | 35.26 | 229.71 | 0.6967 | -814.6 | -332.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 08:42:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 86 | 6 | 61 | -22.47 | 307.78 | 37.76 | 232.58 | 0.7148 | -961.9 | -518.2 | |
| 9 | -1 | 6 | -1 | -22.59 | 307.39 | 37.37 | 232.19 | 0.7118 | -1252.5 | 999999 | |
| 0 | 7 | 0 | 5 | -22.87 | 306.12 | 36.11 | 230.96 | 0.7014 | -554.0 | -568.1 | |
| 14 | 281 | 10 | 195 | -24.08 | 306.04 | 36.02 | 229.47 | 0.7088 | -999.4 | -315.7 | |
| 8 | -4 | 5 | -4 | -23.84 | 305.55 | 35.53 | 229.39 | 0.7025 | -1285.1 | 999999 | |
| 14 | -4 | 10 | -4 | -24.32 | 305.65 | 35.63 | 228.90 | 0.7069 | -932.3 | 999999 | |
| 7 | -4 | 5 | -4 | -23.52 | 305.14 | 35.12 | 229.47 | 0.6964 | -1180.5 | 999999 | |
| 6 | 34 | 4 | 23 | -20.23 | 303.92 | 33.90 | 232.62 | 0.6610 | -1060.7 | -730.8 | |
| 3 | -8 | 2 | -8 | -20.39 | 303.71 | 33.69 | 232.26 | 0.6600 | -1102.1 | 999999 | |
| 6 | -4 | 4 | -4 | -24.99 | 304.88 | 34.86 | 227.55 | 0.7045 | -150.1 | 999999 | |
| 0 | 6 | 0 | 4 | -23.14 | 304.31 | 34.29 | 229.30 | 0.6857 | -932.0 | -840.4 | |
| 0 | 9 | 0 | 6 | -23.21 | 303.87 | 33.85 | 228.88 | 0.6820 | -702.0 | -560.1 | |
| 0 | 7 | 0 | 5 | -22.89 | 303.58 | 33.56 | 229.03 | 0.6769 | -878.0 | -807.6 | |
| 0 | 6 | 0 | 4 | -20.74 | 303.01 | 32.99 | 231.26 | 0.6552 | -425.0 | -466.3 | |
| 0 | 6 | 0 | 4 | -22.95 | 302.89 | 32.88 | 228.41 | 0.6706 | -69.0 | -195.6 | |
| 0 | 5 | 0 | 4 | -24.75 | 303.42 | 33.40 | 226.69 | 0.6893 | -322.0 | -232.0 | |
| 0 | 6 | 0 | 4 | -25.59 | 303.47 | 33.46 | 225.77 | 0.6962 | 764.0 | 591.3 | |
| 9 | 33 | 5 | 21 | -22.44 | 299.68 | 29.66 | 226.28 | 0.6353 | 973.3 | 627.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
