SOHO MDI 2000-11-03 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72 | 454 | 38 | 235 | -9.99 | 277.76 | 9.10 | 212.50 | 0.2977 | -1133.1 | -460.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 11:11:32 UT |

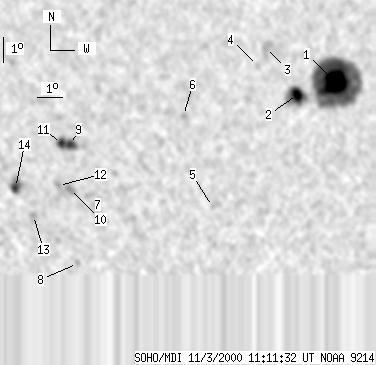

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46 | 296 | 24 | 154 | -9.36 | 280.02 | 11.37 | 220.18 | 0.3028 | -2005.2 | -668.5 | |
| 10 | 46 | 5 | 24 | -9.81 | 278.53 | 9.87 | 215.34 | 0.2935 | -1533.3 | -853.3 | |
| 0 | 22 | 0 | 11 | -7.94 | 277.22 | 8.56 | 215.50 | 0.2551 | -922.0 | -686.7 | |
| 0 | 5 | 0 | 3 | -8.65 | 276.92 | 8.26 | 213.00 | 0.2621 | -712.0 | -574.4 | |
| 0 | 2 | 0 | 1 | -14.26 | 275.28 | 6.63 | 199.64 | 0.3344 | -845.0 | -810.1 | |
| 0 | 3 | 0 | 2 | -10.60 | 274.05 | 5.40 | 200.11 | 0.2700 | -368.0 | -416.5 | |
| 0 | 8 | 0 | 4 | -13.79 | 270.30 | 1.65 | 185.22 | 0.3088 | -423.0 | -356.3 | |
| 0 | 4 | 0 | 2 | -16.56 | 269.93 | 1.27 | 183.46 | 0.3541 | -528.0 | -553.8 | |
| 6 | 30 | 3 | 15 | -11.74 | 269.62 | 0.97 | 183.48 | 0.2737 | 1223.5 | 901.9 | |
| 0 | 10 | 0 | 5 | -13.51 | 269.59 | 0.94 | 183.02 | 0.3032 | 892.0 | 677.7 | |
| 5 | -9 | 3 | -9 | -11.70 | 269.27 | 0.61 | 182.22 | 0.2727 | 1257.1 | 999999 | |
| 0 | 6 | 0 | 3 | -13.39 | 269.15 | 0.50 | 181.62 | 0.3009 | 757.0 | 455.3 | |
| 0 | 4 | 0 | 2 | -14.60 | 268.16 | -0.49 | 178.51 | 0.3211 | 970.0 | 839.5 | |
| 5 | 18 | 3 | 9 | -13.47 | 267.45 | -1.20 | 176.12 | 0.3028 | 1163.0 | 974.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
