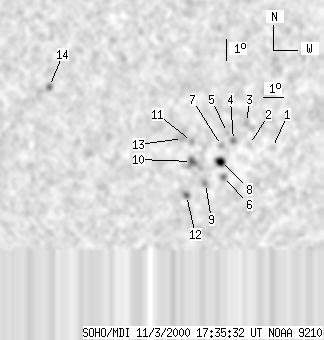

SOHO MDI 2000-11-03 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 115 | 4 | 74 | -27.44 | 290.15 | 25.01 | 215.95 | 0.6403 | 573.5 | 371.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -27.38 | 293.35 | 28.21 | 219.27 | 0.6656 | 679.0 | 576.9 | |
| 0 | 4 | 0 | 2 | -27.20 | 292.18 | 27.04 | 218.33 | 0.6543 | 643.0 | 581.1 | |
| 0 | 14 | 0 | 9 | -26.20 | 291.78 | 26.64 | 219.01 | 0.6414 | 849.0 | 656.7 | |
| 0 | 6 | 0 | 4 | -26.99 | 291.35 | 26.21 | 217.73 | 0.6455 | 830.0 | 695.5 | |
| 0 | 3 | 0 | 2 | -26.62 | 290.97 | 25.83 | 217.74 | 0.6387 | 757.0 | 674.3 | |
| 0 | 7 | 0 | 5 | -28.62 | 291.29 | 26.15 | 215.98 | 0.6609 | 524.0 | 423.2 | |
| 0 | 4 | 0 | 3 | -27.20 | 290.82 | 25.68 | 216.97 | 0.6433 | 866.0 | 712.6 | |
| 7 | 13 | 4 | 9 | -27.93 | 290.96 | 25.82 | 216.36 | 0.6515 | 622.5 | 362.0 | |
| 0 | 7 | 0 | 5 | -28.91 | 290.49 | 25.35 | 214.88 | 0.6577 | -822.0 | -582.5 | |
| 0 | 25 | 0 | 16 | -27.88 | 289.55 | 24.41 | 214.95 | 0.6401 | 761.0 | 290.2 | |
| 0 | 5 | 0 | 3 | -26.97 | 289.34 | 24.20 | 215.65 | 0.6291 | 826.0 | 713.0 | |
| 0 | 7 | 0 | 4 | -29.44 | 289.70 | 24.56 | 213.56 | 0.6572 | -770.0 | -582.9 | |
| 0 | 8 | 0 | 5 | -26.83 | 288.88 | 23.74 | 215.30 | 0.6239 | 832.0 | 796.4 | |
| 0 | 7 | 0 | 4 | -24.35 | 282.37 | 17.23 | 209.74 | 0.5460 | 499.0 | 378.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
