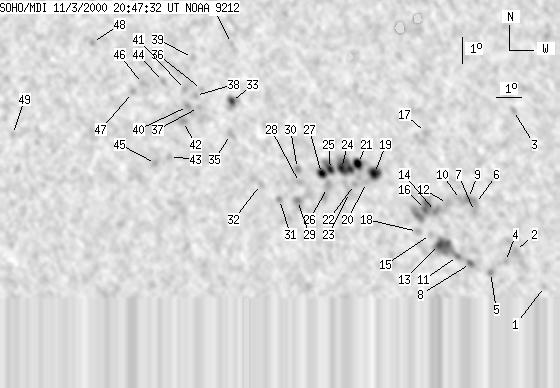

SOHO MDI 2000-11-03 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30 | 511 | 14 | 258 | 9.71 | 269.35 | 5.97 | 314.21 | 0.1433 | 752.3 | 465.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 5.51 | 276.90 | 13.52 | 276.93 | 0.2355 | 591.0 | 418.6 | |
| 0 | 12 | 0 | 6 | 6.91 | 275.79 | 12.40 | 283.81 | 0.2206 | 811.0 | 809.7 | |
| 0 | 4 | 0 | 2 | 12.32 | 275.91 | 12.53 | 304.64 | 0.2588 | 809.0 | 645.6 | |
| 0 | 6 | 0 | 3 | 6.49 | 275.38 | 12.00 | 282.31 | 0.2124 | 788.0 | 796.4 | |
| 0 | 6 | 0 | 3 | 6.08 | 274.78 | 11.39 | 280.85 | 0.2010 | 891.0 | 718.4 | |
| 0 | 10 | 0 | 5 | 8.74 | 274.25 | 10.87 | 294.26 | 0.2054 | 873.0 | 624.4 | |
| 0 | 7 | 0 | 3 | 8.43 | 274.21 | 10.82 | 292.94 | 0.2026 | 667.0 | 637.1 | |
| 0 | 6 | 0 | 3 | 6.43 | 274.00 | 10.61 | 283.43 | 0.1891 | 920.0 | 787.3 | |
| 0 | 10 | 0 | 5 | 8.94 | 273.98 | 10.60 | 295.67 | 0.2025 | 943.0 | 718.6 | |
| 0 | 10 | 0 | 5 | 8.90 | 273.66 | 10.28 | 296.18 | 0.1974 | 892.0 | 802.7 | |
| 0 | 7 | 0 | 3 | 6.71 | 273.49 | 10.11 | 285.52 | 0.1817 | 1079.0 | 889.2 | |
| 0 | 12 | 0 | 6 | 8.76 | 273.15 | 9.76 | 296.62 | 0.1883 | 887.0 | 817.4 | |
| 0 | 38 | 0 | 19 | 7.18 | 272.79 | 9.41 | 289.19 | 0.1726 | 1197.0 | 991.1 | |
| 0 | 10 | 0 | 5 | 8.45 | 272.67 | 9.28 | 296.23 | 0.1787 | 1248.0 | 1060.7 | |
| 0 | 5 | 0 | 3 | 7.57 | 272.45 | 9.06 | 292.02 | 0.1693 | 617.0 | 514.2 | |
| 0 | 49 | 0 | 25 | 8.53 | 272.27 | 8.89 | 297.62 | 0.1733 | 1328.0 | 973.9 | |
| 0 | 8 | 0 | 4 | 11.51 | 272.36 | 8.97 | 310.74 | 0.2027 | 943.0 | 844.5 | |
| 0 | 8 | 0 | 4 | 7.69 | 271.94 | 8.56 | 293.85 | 0.1620 | 701.0 | 586.7 | |
| 10 | 21 | 5 | 10 | 9.94 | 270.30 | 6.91 | 311.29 | 0.1585 | 1296.4 | 936.2 | |
| 0 | 3 | 0 | 2 | 9.60 | 269.98 | 6.59 | 310.90 | 0.1505 | 772.0 | 774.1 | |
| 5 | 55 | 2 | 28 | 10.34 | 269.64 | 6.25 | 315.96 | 0.1549 | 1021.0 | 811.6 | |
| 0 | 4 | 0 | 2 | 9.52 | 269.50 | 6.12 | 312.61 | 0.1436 | 917.0 | 841.7 | |
| 0 | 14 | 0 | 7 | 9.22 | 269.30 | 5.92 | 311.91 | 0.1374 | 852.0 | 739.2 | |
| 4 | -21 | 2 | -21 | 10.15 | 269.01 | 5.62 | 318.10 | 0.1451 | 1456.4 | 999999 | |
| 3 | 33 | 2 | 17 | 10.11 | 268.57 | 5.19 | 320.18 | 0.1397 | 1241.7 | 695.6 | |
| 0 | 25 | 0 | 12 | 9.42 | 268.44 | 5.06 | 317.42 | 0.1292 | 927.0 | 692.6 | |
| 5 | -25 | 2 | -25 | 9.96 | 268.22 | 4.83 | 321.44 | 0.1338 | 1180.6 | 999999 | |
| 0 | 5 | 0 | 2 | 9.62 | 267.35 | 3.97 | 325.17 | 0.1200 | 590.0 | 631.7 | |
| 0 | 14 | 0 | 7 | 8.92 | 267.27 | 3.88 | 322.12 | 0.1095 | 914.0 | 759.3 | |
| 0 | 6 | 0 | 3 | 10.16 | 267.28 | 3.90 | 328.10 | 0.1272 | 548.0 | 384.2 | |
| 0 | 4 | 0 | 2 | 8.96 | 266.56 | 3.18 | 327.69 | 0.1030 | -348.0 | -281.4 | |
| 0 | 6 | 0 | 3 | 9.54 | 265.83 | 2.44 | 336.50 | 0.1060 | 623.0 | 481.6 | |
| 3 | 18 | 1 | 9 | 12.76 | 264.71 | 1.33 | 351.57 | 0.1548 | -1182.3 | -742.2 | |
| 0 | 3 | 0 | 2 | 15.03 | 264.72 | 1.34 | 353.27 | 0.1936 | -533.0 | -387.4 | |
| 0 | 10 | 0 | 5 | 11.48 | 264.67 | 1.28 | 350.45 | 0.1328 | -862.0 | -794.2 | |
| 0 | 4 | 0 | 2 | 13.23 | 263.53 | 0.14 | 359.13 | 0.1613 | -614.0 | -539.9 | |
| 0 | 3 | 0 | 2 | 12.53 | 263.41 | 0.03 | 359.83 | 0.1491 | -862.0 | -794.7 | |
| 0 | 5 | 0 | 2 | 13.00 | 263.29 | -0.09 | 0.58 | 0.1572 | -834.0 | -761.9 | |
| 0 | 5 | 0 | 3 | 14.48 | 263.17 | -0.21 | 1.13 | 0.1829 | -800.0 | -671.7 | |
| 0 | 12 | 0 | 6 | 12.57 | 262.98 | -0.41 | 2.67 | 0.1500 | -1096.0 | -894.8 | |
| 0 | 4 | 0 | 2 | 13.23 | 262.90 | -0.49 | 2.96 | 0.1615 | -833.0 | -729.4 | |
| 0 | 8 | 0 | 4 | 11.99 | 262.82 | -0.56 | 3.96 | 0.1400 | -1036.0 | -902.3 | |
| 0 | 5 | 0 | 3 | 10.63 | 262.27 | -1.11 | 9.35 | 0.1176 | -849.0 | -699.8 | |
| 0 | 4 | 0 | 2 | 13.54 | 262.02 | -1.36 | 7.91 | 0.1683 | -917.0 | -778.2 | |
| 0 | 4 | 0 | 2 | 10.36 | 261.73 | -1.66 | 14.39 | 0.1150 | -788.0 | -755.2 | |
| 0 | 10 | 0 | 5 | 13.46 | 261.19 | -2.19 | 12.73 | 0.1695 | -506.0 | -470.1 | |
| 0 | 5 | 0 | 3 | 13.11 | 260.80 | -2.58 | 15.47 | 0.1652 | -665.0 | -488.7 | |
| 0 | 4 | 0 | 2 | 15.06 | 259.18 | -4.20 | 20.22 | 0.2056 | -715.0 | -759.7 | |
| 0 | 4 | 0 | 2 | 11.45 | 256.09 | -7.29 | 43.68 | 0.1810 | -557.0 | -475.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
