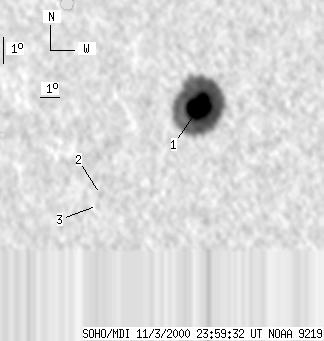

SOHO MDI 2000-11-03 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50 | 362 | 32 | 228 | 6.34 | 223.41 | -38.22 | 84.78 | 0.6198 | 1530.7 | 487.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-03 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50 | 356 | 32 | 224 | 6.41 | 223.49 | -38.14 | 84.68 | 0.6187 | 1557.5 | 507.6 | |
| 0 | 4 | 0 | 3 | 2.80 | 218.69 | -42.94 | 90.17 | 0.6828 | -740.0 | -681.5 | |
| 0 | 2 | 0 | 1 | 2.37 | 218.55 | -43.08 | 90.79 | 0.6848 | -489.0 | -423.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
