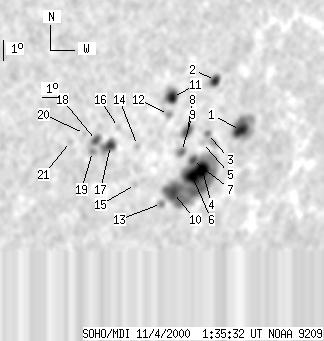

SOHO MDI 2000-11-04 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103 | 487 | 82 | 384 | -23.43 | 304.95 | 44.20 | 235.32 | 0.7797 | -560.2 | -212.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16 | 64 | 13 | 52 | -22.51 | 307.68 | 46.93 | 237.76 | 0.8002 | -811.9 | -320.1 | |
| 7 | 16 | 6 | 12 | -20.27 | 305.29 | 44.54 | 239.22 | 0.7682 | -604.1 | -426.0 | |
| 0 | 21 | 0 | 16 | -22.53 | 305.71 | 44.96 | 236.77 | 0.7825 | -737.0 | -492.5 | |
| 17 | 256 | 14 | 206 | -24.10 | 306.09 | 45.34 | 235.17 | 0.7933 | -723.9 | -236.7 | |
| 0 | 2 | 0 | 2 | -22.91 | 305.57 | 44.82 | 236.26 | 0.7831 | -644.0 | -656.4 | |
| 14 | -4 | 12 | -4 | -24.38 | 305.62 | 44.87 | 234.61 | 0.7905 | -911.7 | 999999 | |
| 4 | -4 | 3 | -4 | -23.67 | 305.30 | 44.55 | 235.25 | 0.7843 | -908.6 | 999999 | |
| 8 | 16 | 6 | 12 | -22.38 | 304.48 | 43.73 | 236.30 | 0.7706 | -498.2 | -304.3 | |
| 2 | 9 | 1 | 7 | -23.24 | 304.47 | 43.73 | 235.31 | 0.7748 | -787.0 | -684.0 | |
| 12 | -4 | 10 | -4 | -25.03 | 304.78 | 44.03 | 233.43 | 0.7865 | -473.7 | 999999 | |
| 11 | 27 | 8 | 20 | -20.87 | 303.06 | 42.31 | 237.33 | 0.7495 | -679.3 | -541.9 | |
| 0 | 10 | 0 | 8 | -21.59 | 303.09 | 42.34 | 236.49 | 0.7535 | 491.0 | 224.3 | |
| 0 | 6 | 0 | 5 | -25.49 | 304.28 | 43.53 | 232.64 | 0.7845 | 512.0 | 398.5 | |
| 0 | 3 | 0 | 2 | -22.85 | 301.82 | 41.07 | 234.27 | 0.7482 | -561.0 | -439.0 | |
| 0 | 3 | 0 | 3 | -24.56 | 302.38 | 41.63 | 232.61 | 0.7628 | -324.0 | -261.9 | |
| 0 | 3 | 0 | 2 | -22.02 | 300.48 | 39.74 | 234.45 | 0.7307 | 418.0 | 313.6 | |
| 8 | 25 | 6 | 18 | -22.78 | 300.31 | 39.56 | 233.44 | 0.7335 | 364.1 | 223.3 | |
| 4 | 13 | 3 | 10 | -22.53 | 299.47 | 38.72 | 233.21 | 0.7239 | 849.4 | 690.8 | |
| 0 | 6 | 0 | 4 | -23.00 | 299.42 | 38.67 | 232.61 | 0.7262 | 575.0 | 416.1 | |
| 0 | 3 | 0 | 2 | -22.19 | 298.72 | 37.97 | 233.12 | 0.7146 | 499.0 | 466.3 | |
| 0 | 4 | 0 | 3 | -22.51 | 298.09 | 37.34 | 232.32 | 0.7104 | 444.0 | 371.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
