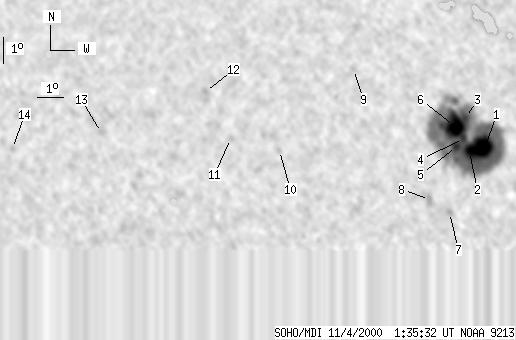

SOHO MDI 2000-11-04 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100 | 650 | 50 | 329 | 2.30 | 271.98 | 11.23 | 259.31 | 0.2004 | 1877.1 | 712.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50 | 608 | 26 | 308 | 2.00 | 273.18 | 12.44 | 261.33 | 0.2187 | 1992.8 | 768.9 | |
| -1 | -1 | -1 | -1 | 1.89 | 272.59 | 11.84 | 260.36 | 0.2090 | 999999 | 999999 | |
| 5 | -1 | 2 | -1 | 3.20 | 272.45 | 11.70 | 266.61 | 0.2038 | 1357.1 | 999999 | |
| 5 | -1 | 2 | -1 | 2.40 | 272.36 | 11.61 | 262.60 | 0.2037 | 1549.3 | 999999 | |
| 6 | -1 | 3 | -1 | 2.09 | 272.08 | 11.33 | 260.90 | 0.1998 | 1670.5 | 999999 | |
| 34 | -1 | 17 | -1 | 2.86 | 272.01 | 11.26 | 264.71 | 0.1968 | 2032.7 | 999999 | |
| 0 | 5 | 0 | 2 | -0.44 | 271.80 | 11.05 | 248.43 | 0.2071 | 772.0 | 650.1 | |
| 0 | 9 | 0 | 5 | 0.07 | 271.02 | 10.27 | 249.39 | 0.1914 | 955.0 | 686.7 | |
| 0 | 3 | 0 | 1 | 5.10 | 268.09 | 7.34 | 279.03 | 0.1295 | -687.0 | -572.3 | |
| 0 | 5 | 0 | 2 | 2.01 | 265.20 | 4.45 | 246.24 | 0.0852 | 550.0 | 419.7 | |
| 0 | 5 | 0 | 3 | 2.48 | 263.31 | 2.56 | 239.72 | 0.0520 | -749.0 | -620.1 | |
| 0 | 4 | 0 | 2 | 4.29 | 262.35 | 1.60 | 281.04 | 0.0286 | -914.0 | -781.2 | |
| 0 | 6 | 0 | 3 | 2.71 | 258.35 | -2.40 | 117.79 | 0.0476 | -890.0 | -693.5 | |
| 0 | 5 | 0 | 3 | 2.07 | 254.91 | -5.84 | 107.89 | 0.1073 | -711.0 | -618.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
