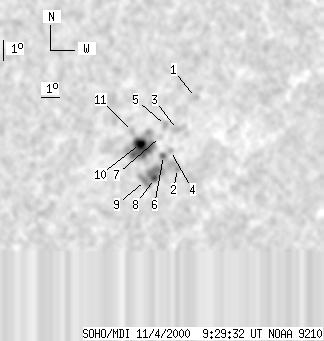

SOHO MDI 2000-11-04 09:29:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13 | 184 | 9 | 130 | -28.07 | 289.85 | 33.44 | 223.08 | 0.7143 | 432.0 | 16.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 09:29:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -25.68 | 291.28 | 34.87 | 226.84 | 0.7087 | 687.0 | 592.8 | |
| 0 | 15 | 0 | 11 | -28.87 | 291.48 | 35.07 | 223.46 | 0.7338 | -615.0 | -312.7 | |
| 0 | 13 | 0 | 9 | -27.08 | 290.82 | 34.41 | 224.91 | 0.7150 | 757.0 | 623.5 | |
| 0 | 3 | 0 | 2 | -28.02 | 290.79 | 34.38 | 223.86 | 0.7218 | 525.0 | 439.5 | |
| 0 | 8 | 0 | 5 | -26.87 | 290.12 | 33.71 | 224.60 | 0.7074 | 811.0 | 718.3 | |
| 0 | 7 | 0 | 5 | -28.24 | 290.50 | 34.09 | 223.40 | 0.7210 | 513.0 | 269.4 | |
| 0 | 2 | 0 | 2 | -27.36 | 290.03 | 33.62 | 223.99 | 0.7103 | 576.0 | 543.8 | |
| 3 | 30 | 2 | 22 | -29.28 | 290.41 | 34.00 | 222.21 | 0.7282 | -1050.7 | -835.7 | |
| 0 | 14 | 0 | 10 | -29.35 | 289.96 | 33.55 | 221.79 | 0.7252 | -935.0 | -748.9 | |
| 10 | 84 | 7 | 59 | -27.64 | 289.08 | 32.67 | 222.94 | 0.7045 | 875.4 | 260.3 | |
| 0 | 5 | 0 | 3 | -27.08 | 288.49 | 32.08 | 223.06 | 0.6949 | 877.0 | 788.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
