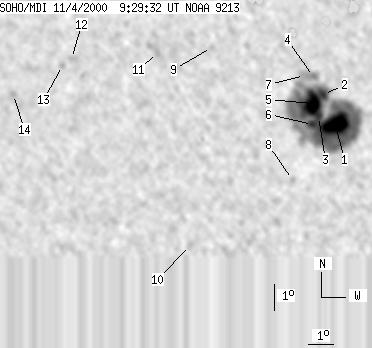

SOHO MDI 2000-11-04 09:29:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97 | 608 | 51 | 314 | 2.52 | 272.00 | 15.59 | 265.53 | 0.2710 | 1758.3 | 665.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 09:29:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48 | 536 | 25 | 277 | 2.01 | 273.02 | 16.61 | 263.86 | 0.2887 | 1874.7 | 757.0 | |
| 7 | -1 | 4 | -1 | 3.18 | 272.56 | 16.14 | 267.81 | 0.2791 | 1248.0 | 999999 | |
| 6 | -1 | 3 | -1 | 2.33 | 272.34 | 15.93 | 264.71 | 0.2767 | 1574.7 | 999999 | |
| 0 | 7 | 0 | 4 | 3.88 | 272.17 | 15.76 | 270.31 | 0.2722 | 1102.0 | 900.4 | |
| 31 | -1 | 16 | -1 | 2.84 | 272.11 | 15.70 | 266.47 | 0.2720 | 1992.2 | 999999 | |
| 5 | -1 | 3 | -1 | 2.03 | 272.10 | 15.69 | 263.51 | 0.2732 | 1515.3 | 999999 | |
| 0 | 15 | 0 | 8 | 3.92 | 271.81 | 15.40 | 270.46 | 0.2661 | 712.0 | 771.0 | |
| 0 | 4 | 0 | 2 | -0.07 | 271.29 | 14.88 | 255.24 | 0.2668 | 558.0 | 588.7 | |
| 0 | 5 | 0 | 2 | 5.06 | 268.14 | 11.73 | 275.90 | 0.2045 | -406.0 | -404.2 | |
| 0 | 7 | 0 | 3 | -2.56 | 267.24 | 10.83 | 239.18 | 0.2196 | 695.0 | 603.6 | |
| 0 | 17 | 0 | 9 | 4.89 | 266.01 | 9.60 | 276.04 | 0.1679 | -917.0 | -669.7 | |
| 0 | 7 | 0 | 4 | 4.69 | 262.66 | 6.25 | 277.12 | 0.1098 | -774.0 | -690.6 | |
| 0 | 5 | 0 | 3 | 4.43 | 262.31 | 5.90 | 274.94 | 0.1033 | -882.0 | -742.4 | |
| 0 | 5 | 0 | 2 | 3.32 | 260.40 | 3.99 | 261.32 | 0.0707 | -920.0 | -845.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
