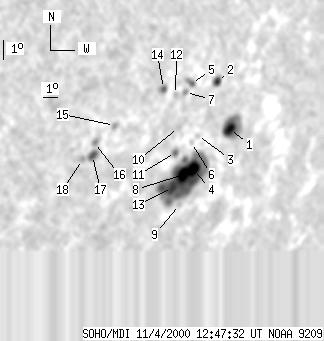

SOHO MDI 2000-11-04 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54 | 343 | 50 | 311 | -23.56 | 305.46 | 50.86 | 238.32 | 0.8371 | -552.6 | -212.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 51 | 13 | 48 | -22.54 | 307.74 | 53.14 | 240.37 | 0.8523 | -646.5 | -214.3 | |
| 4 | 10 | 4 | 9 | -20.40 | 305.83 | 51.23 | 242.03 | 0.8296 | -533.5 | -359.9 | |
| 0 | 2 | 0 | 2 | -22.68 | 305.63 | 51.03 | 239.39 | 0.8356 | -423.0 | -420.5 | |
| 14 | 216 | 13 | 197 | -24.17 | 306.17 | 51.57 | 237.96 | 0.8453 | -527.8 | -241.6 | |
| 0 | 8 | 0 | 7 | -20.39 | 304.14 | 49.54 | 241.37 | 0.8148 | -632.0 | -591.0 | |
| 0 | 3 | 0 | 3 | -22.96 | 305.38 | 50.78 | 238.97 | 0.8346 | -403.0 | -353.2 | |
| 0 | 5 | 0 | 4 | -20.76 | 303.92 | 49.32 | 240.86 | 0.8142 | -435.0 | -326.8 | |
| 12 | -4 | 11 | -4 | -24.35 | 305.59 | 50.99 | 237.53 | 0.8413 | -864.0 | 999999 | |
| 0 | 2 | 0 | 2 | -25.68 | 306.10 | 51.50 | 236.28 | 0.8501 | 308.0 | 332.8 | |
| 0 | 3 | 0 | 3 | -22.25 | 304.17 | 49.57 | 239.26 | 0.8219 | -334.0 | -254.1 | |
| 0 | 7 | 0 | 6 | -23.34 | 304.52 | 49.92 | 238.19 | 0.8289 | -657.0 | -547.5 | |
| 0 | 4 | 0 | 3 | -20.81 | 303.32 | 48.72 | 240.54 | 0.8090 | -189.0 | -151.9 | |
| 6 | -4 | 5 | -4 | -24.89 | 305.16 | 50.56 | 236.75 | 0.8399 | -573.4 | 999999 | |
| 1 | 7 | 1 | 6 | -20.51 | 302.44 | 47.84 | 240.51 | 0.7999 | -760.7 | -640.0 | |
| 0 | 6 | 0 | 5 | -21.95 | 300.08 | 45.48 | 237.74 | 0.7844 | 426.0 | 398.1 | |
| 0 | 5 | 0 | 4 | -22.63 | 299.18 | 44.58 | 236.49 | 0.7793 | 611.0 | 505.1 | |
| 3 | 11 | 3 | 9 | -23.19 | 299.30 | 44.70 | 235.90 | 0.7830 | 639.3 | 521.5 | |
| 0 | 3 | 0 | 3 | -23.34 | 298.77 | 44.17 | 235.46 | 0.7790 | 571.0 | 434.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
