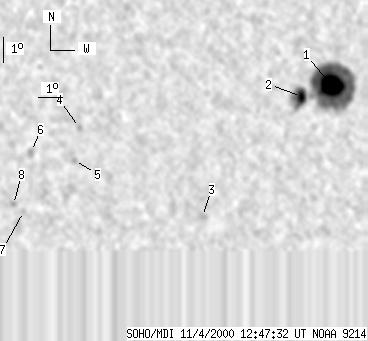

SOHO MDI 2000-11-04 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52 | 323 | 30 | 182 | -9.68 | 278.98 | 24.38 | 240.16 | 0.4707 | -1618.3 | -564.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42 | 252 | 24 | 142 | -9.30 | 280.10 | 25.50 | 242.38 | 0.4814 | -1774.6 | -624.5 | |
| 10 | 41 | 6 | 23 | -9.70 | 278.84 | 24.24 | 240.43 | 0.4672 | -1406.7 | -856.1 | |
| 0 | 7 | 0 | 4 | -14.40 | 275.03 | 20.43 | 227.47 | 0.4608 | -377.0 | -435.9 | |
| 0 | 4 | 0 | 2 | -10.71 | 269.67 | 15.07 | 225.58 | 0.3593 | 554.0 | 646.2 | |
| 0 | 3 | 0 | 2 | -12.02 | 269.54 | 14.94 | 222.78 | 0.3729 | 525.0 | 418.2 | |
| 0 | 8 | 0 | 4 | -11.63 | 267.78 | 13.18 | 219.96 | 0.3492 | 874.0 | 655.2 | |
| 0 | 3 | 0 | 2 | -14.04 | 267.58 | 12.98 | 215.39 | 0.3779 | 502.0 | 529.9 | |
| 0 | 5 | 0 | 3 | -13.75 | 267.16 | 12.56 | 214.96 | 0.3702 | 613.0 | 554.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
