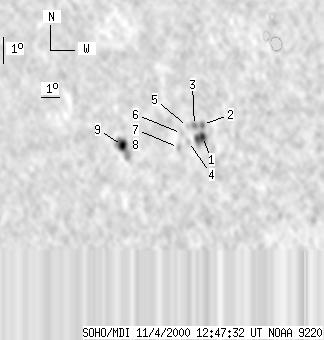

SOHO MDI 2000-11-04 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 68 | 7 | 45 | 6.17 | 211.11 | -43.49 | 85.14 | 0.6887 | -223.1 | 83.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 20 | 2 | 13 | 6.41 | 212.97 | -41.63 | 84.76 | 0.6653 | 898.6 | 636.9 | |
| 0 | 5 | 0 | 3 | 6.87 | 212.92 | -41.68 | 84.07 | 0.6661 | 932.0 | 637.9 | |
| 0 | 5 | 0 | 3 | 6.81 | 212.51 | -42.09 | 84.17 | 0.6714 | 486.0 | 599.0 | |
| 0 | 4 | 0 | 3 | 6.18 | 212.26 | -42.34 | 85.12 | 0.6744 | 69.0 | 162.9 | |
| 0 | 2 | 0 | 1 | 6.76 | 212.15 | -42.45 | 84.27 | 0.6760 | 396.0 | 405.1 | |
| 0 | 3 | 0 | 2 | 6.48 | 211.86 | -42.74 | 84.70 | 0.6796 | 585.0 | 552.3 | |
| 0 | 3 | 0 | 2 | 5.93 | 211.76 | -42.84 | 85.51 | 0.6808 | 558.0 | 380.1 | |
| 0 | 9 | 0 | 6 | 5.49 | 209.04 | -45.56 | 86.15 | 0.7147 | -763.0 | -639.8 | |
| 8 | 17 | 5 | 12 | 5.86 | 208.72 | -45.88 | 85.64 | 0.7185 | -824.7 | -597.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
