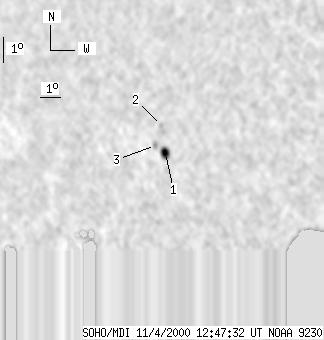

SOHO MDI 2000-11-04 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 21 | 5 | 13 | 10.29 | 216.13 | -38.47 | 78.41 | 0.6272 | 814.9 | 539.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 14 | 5 | 9 | 10.15 | 216.28 | -38.32 | 78.60 | 0.6249 | 847.7 | 583.4 | |
| 0 | 2 | 0 | 1 | 11.19 | 215.92 | -38.68 | 77.03 | 0.6314 | 533.0 | 560.0 | |
| 0 | 5 | 0 | 3 | 10.40 | 215.74 | -38.86 | 78.31 | 0.6325 | 276.0 | 398.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
