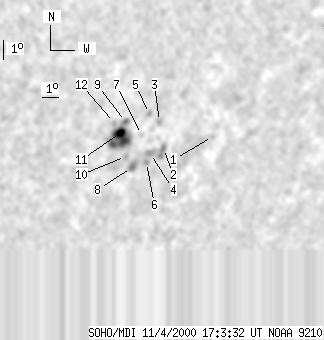

SOHO MDI 2000-11-04 17:03:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 117 | 3 | 87 | -27.92 | 289.97 | 37.71 | 226.38 | 0.7487 | 516.2 | 28.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 17:03:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -27.99 | 294.30 | 42.04 | 229.06 | 0.7851 | 210.0 | 275.9 | |
| 0 | 14 | 0 | 11 | -28.41 | 291.66 | 39.40 | 226.99 | 0.7659 | -469.0 | -415.0 | |
| 0 | 6 | 0 | 4 | -27.16 | 290.90 | 38.64 | 227.86 | 0.7516 | 465.0 | 474.3 | |
| 0 | 7 | 0 | 6 | -28.60 | 291.01 | 38.75 | 226.35 | 0.7619 | -74.0 | -2.3 | |
| 0 | 4 | 0 | 3 | -26.77 | 290.19 | 37.93 | 227.82 | 0.7430 | 618.0 | 621.8 | |
| 0 | 5 | 0 | 4 | -29.01 | 290.97 | 38.71 | 225.88 | 0.7641 | -465.0 | -403.9 | |
| 0 | 2 | 0 | 2 | -27.71 | 290.13 | 37.87 | 226.74 | 0.7487 | 449.0 | 384.6 | |
| 0 | 9 | 0 | 7 | -29.20 | 290.21 | 37.95 | 225.17 | 0.7593 | -885.0 | -827.0 | |
| 0 | 5 | 0 | 3 | -27.07 | 289.00 | 36.75 | 226.66 | 0.7348 | 622.0 | 642.6 | |
| 0 | 4 | 0 | 3 | -28.68 | 289.65 | 37.39 | 225.35 | 0.7512 | -499.0 | -499.1 | |
| 5 | 54 | 3 | 39 | -27.56 | 288.92 | 36.66 | 226.06 | 0.7375 | 853.0 | 184.8 | |
| 0 | 3 | 0 | 2 | -27.09 | 288.42 | 36.16 | 226.22 | 0.7299 | 653.0 | 719.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
