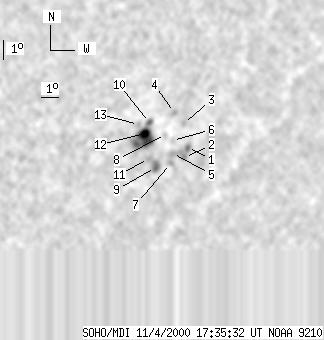

SOHO MDI 2000-11-04 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 121 | 6 | 92 | -28.03 | 289.93 | 37.96 | 226.43 | 0.7514 | 500.8 | -28.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 6 | -28.33 | 291.62 | 39.65 | 227.23 | 0.7675 | -469.0 | -429.2 | |
| 0 | 12 | 0 | 9 | -28.78 | 291.65 | 39.69 | 226.76 | 0.7706 | -456.0 | -261.2 | |
| 0 | 4 | 0 | 3 | -27.22 | 290.91 | 38.95 | 227.99 | 0.7546 | 485.0 | 474.5 | |
| 0 | 5 | 0 | 4 | -26.70 | 290.20 | 38.24 | 228.11 | 0.7451 | 609.0 | 573.4 | |
| 0 | 7 | 0 | 6 | -28.57 | 290.87 | 38.91 | 226.49 | 0.7629 | -25.0 | -41.0 | |
| 0 | 2 | 0 | 2 | -27.97 | 290.61 | 38.65 | 226.97 | 0.7569 | 286.0 | 309.2 | |
| 0 | 5 | 0 | 4 | -29.03 | 290.97 | 39.00 | 226.06 | 0.7666 | -465.0 | -431.7 | |
| 0 | 2 | 0 | 2 | -27.67 | 290.10 | 38.14 | 226.95 | 0.7507 | 449.0 | 361.2 | |
| 0 | 13 | 0 | 10 | -29.17 | 290.18 | 38.22 | 225.38 | 0.7612 | -885.0 | -744.6 | |
| 0 | 7 | 0 | 5 | -27.09 | 288.99 | 37.02 | 226.84 | 0.7373 | 622.0 | 703.2 | |
| 0 | 7 | 0 | 5 | -28.74 | 289.60 | 37.64 | 225.46 | 0.7536 | -499.0 | -514.8 | |
| 9 | 46 | 6 | 34 | -27.58 | 288.91 | 36.94 | 226.24 | 0.7399 | 685.0 | 124.3 | |
| 0 | 3 | 0 | 2 | -27.15 | 288.42 | 36.45 | 226.37 | 0.7328 | 833.0 | 768.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
