groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9212 6 259 3 137 9.32 269.66 18.58 289.60 0.3348 552.6 454.4


previous   or   next   observation for the same group / back to the solar disc

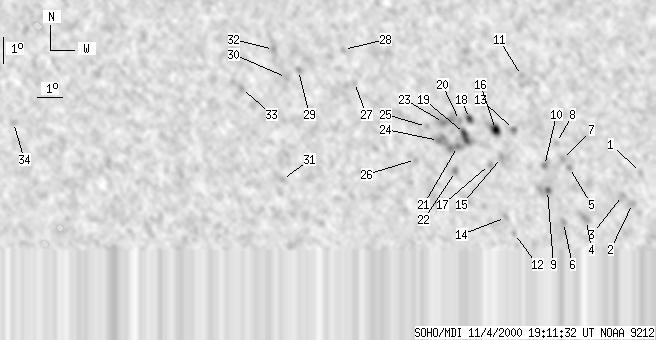

SOHO MDI 2000-11-04 19:11:32 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0 4 0 2 8.18 276.84 25.75 280.71 0.4396 701.0 581.9
2 0 9 0 5 6.99 276.42 25.33 278.11 0.4308 706.0 630.5
3 0 10 0 5 7.31 276.01 24.92 278.96 0.4250 799.0 751.2
4 0 11 0 6 6.39 274.43 23.34 277.11 0.3986 731.0 643.0
5 0 4 0 2 8.45 273.83 22.74 282.49 0.3933 880.0 735.3
6 0 5 0 3 6.34 273.46 22.37 277.19 0.3830 940.0 735.2
7 0 4 0 2 8.77 273.55 22.47 283.41 0.3900 963.0 841.5
8 0 5 0 2 9.43 273.34 22.26 285.19 0.3889 666.0 520.7
9 0 15 0 8 7.59 272.85 21.77 280.67 0.3757 973.0 870.0
10 0 5 0 3 8.56 272.78 21.70 283.24 0.3772 973.0 744.2
11 0 3 0 2 12.06 272.07 20.98 292.70 0.3812 495.0 594.4
12 0 4 0 2 5.97 271.41 20.32 276.67 0.3493 -503.0 -330.9
13 0 5 0 3 9.98 271.58 20.49 287.72 0.3635 -271.0 -156.4
14 0 5 0 3 6.59 271.06 19.98 278.56 0.3447 -564.0 -515.8
15 0 6 0 3 8.91 271.01 19.93 285.19 0.3504 1071.0 823.5
16 6 21 3 11 10.00 270.83 19.74 288.33 0.3520 1090.5 756.6
17 0 5 0 3 8.65 270.50 19.41 284.78 0.3414 732.0 520.8
18 0 8 0 4 10.44 269.78 18.69 290.45 0.3379 1020.0 672.0
19 0 19 0 10 9.87 269.54 18.45 289.02 0.3313 1188.0 965.8
20 0 6 0 3 10.38 269.36 18.28 290.64 0.3311 737.0 723.5
21 0 23 0 12 9.37 269.22 18.14 287.83 0.3241 993.0 867.6
22 0 5 0 3 8.41 269.09 18.01 285.01 0.3180 -847.0 -645.7
23 0 11 0 6 10.31 268.70 17.62 291.10 0.3206 1007.0 768.8
24 0 17 0 9 9.62 268.46 17.37 289.25 0.3132 1230.0 943.8
25 0 3 0 2 10.17 268.00 16.91 291.40 0.3089 542.0 408.4
26 0 5 0 2 8.91 267.49 16.40 287.89 0.2944 575.0 492.5
27 0 3 0 1 11.93 265.16 14.08 300.77 0.2782 -639.0 -577.5
28 0 4 0 2 13.22 264.79 13.70 305.40 0.2842 -439.0 -328.8
29 0 6 0 3 12.43 262.93 11.84 306.77 0.2513 -803.0 -764.9
30 0 8 0 4 12.16 262.43 11.35 307.03 0.2420 -864.0 -794.3
31 0 3 0 2 8.22 262.13 11.05 292.00 0.2055 -688.0 -708.8
32 0 5 0 3 13.26 261.96 10.87 311.75 0.2472 -775.0 -821.6
33 0 6 0 3 11.76 260.62 9.53 310.34 0.2137 -711.0 -641.3
34 0 6 0 3 10.49 251.62 0.53 355.48 0.1158 -653.0 -509.8


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
