| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66 | 396 | 37 | 222 | 6.12 | 223.66 | -27.42 | 84.19 | 0.4623 | 1743.1 | 564.2 | |
|
previous
or next observation for the same group /

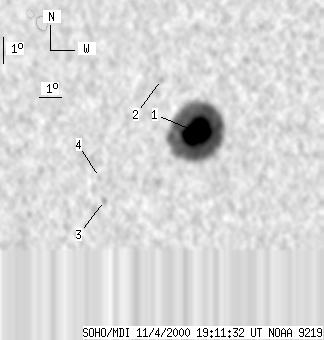

back to the solar disc SOHO MDI 2000-11-04 19:11:32 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66 | 385 | 37 | 215 | 6.16 | 223.77 | -27.31 | 84.11 | 0.4606 | 1768.0 | 575.8 | |
| 0 | 3 | 0 | 2 | 8.15 | 222.05 | -29.03 | 80.24 | 0.4895 | -501.0 | -437.1 | |
| 0 | 4 | 0 | 3 | 3.41 | 219.78 | -31.31 | 89.84 | 0.5209 | 532.0 | 418.6 | |
| 0 | 4 | 0 | 2 | 4.29 | 219.51 | -31.57 | 88.15 | 0.5245 | 595.0 | 536.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
