| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13 | 65 | 7 | 35 | 16.12 | 271.23 | 20.14 | 303.16 | 0.3967 | 423.6 | 182.4 | |
|
previous
or next observation for the same group /

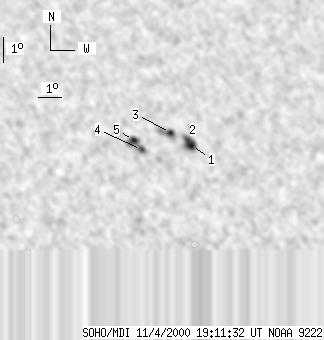

back to the solar disc SOHO MDI 2000-11-04 19:11:32 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 24 | 3 | 13 | 15.93 | 272.31 | 21.23 | 301.45 | 0.4099 | 1006.7 | 717.5 | |
| 2 | -1 | 1 | -1 | 16.17 | 272.17 | 21.08 | 302.13 | 0.4097 | 853.8 | 999999 | |
| 2 | 17 | 1 | 9 | 16.46 | 271.47 | 20.38 | 303.57 | 0.4026 | 843.6 | 617.6 | |
| 0 | 11 | 0 | 6 | 15.82 | 270.17 | 19.08 | 303.76 | 0.3800 | -661.0 | -498.8 | |
| 3 | 13 | 2 | 7 | 16.18 | 269.87 | 18.78 | 304.97 | 0.3790 | -767.8 | -786.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
