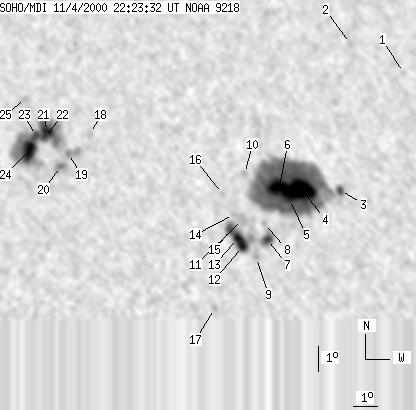

SOHO MDI 2000-11-04 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 155 | 948 | 80 | 489 | 19.16 | 252.77 | 3.44 | 347.85 | 0.2697 | 575.6 | 186.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 23.51 | 260.76 | 11.43 | 331.68 | 0.3846 | 731.0 | 653.2 | |
| 0 | 3 | 0 | 2 | 24.72 | 258.58 | 9.26 | 337.72 | 0.3870 | 971.0 | 801.8 | |
| 4 | 10 | 2 | 5 | 18.78 | 257.79 | 8.46 | 331.61 | 0.2944 | 936.2 | 761.8 | |
| 78 | 541 | 40 | 279 | 18.88 | 256.20 | 6.87 | 336.41 | 0.2841 | 2073.2 | 722.1 | |
| 4 | -4 | 2 | -4 | 18.44 | 255.69 | 6.36 | 337.34 | 0.2741 | 1963.8 | 999999 | |
| -4 | -4 | -4 | -4 | 18.96 | 255.30 | 5.97 | 339.31 | 0.2798 | 999999 | 999999 | |
| 7 | 25 | 4 | 13 | 16.87 | 254.75 | 5.42 | 338.12 | 0.2435 | 1081.3 | 559.2 | |
| 0 | 4 | 0 | 2 | 17.50 | 254.64 | 5.31 | 339.45 | 0.2529 | 458.0 | 421.5 | |
| 0 | 4 | 0 | 2 | 16.16 | 254.28 | 4.96 | 338.71 | 0.2295 | -688.0 | -603.0 | |
| 0 | 4 | 0 | 2 | 19.49 | 253.89 | 4.56 | 344.45 | 0.2808 | 690.0 | 647.1 | |
| 0 | 13 | 0 | 7 | 17.66 | 253.76 | 4.43 | 342.85 | 0.2506 | 95.0 | 178.6 | |
| 18 | 73 | 9 | 37 | 16.59 | 253.73 | 4.40 | 341.53 | 0.2333 | -1307.5 | -544.7 | |
| -12 | -12 | -12 | -12 | 16.91 | 253.54 | 4.21 | 342.71 | 0.2374 | 999999 | 999999 | |
| 0 | 5 | 0 | 2 | 17.86 | 253.40 | 4.07 | 344.39 | 0.2521 | -380.0 | -206.6 | |
| 7 | -12 | 3 | -12 | 17.27 | 253.26 | 3.93 | 344.21 | 0.2419 | -558.1 | 999999 | |
| 0 | 3 | 0 | 2 | 18.70 | 252.97 | 3.64 | 346.77 | 0.2640 | 430.0 | 407.2 | |
| 0 | 5 | 0 | 2 | 14.17 | 252.57 | 3.24 | 342.95 | 0.1877 | -835.0 | -675.5 | |
| 0 | 8 | 0 | 4 | 21.11 | 247.58 | -1.75 | 5.49 | 0.2988 | -784.0 | -641.6 | |
| 0 | 17 | 0 | 9 | 20.30 | 246.69 | -2.64 | 8.69 | 0.2873 | -1370.0 | -1010.7 | |
| 0 | 12 | 0 | 6 | 19.78 | 246.37 | -2.96 | 10.06 | 0.2795 | -1338.0 | -1054.9 | |
| 9 | 213 | 5 | 110 | 21.18 | 245.81 | -3.52 | 10.91 | 0.3043 | -1413.6 | -777.8 | |
| 3 | -21 | 2 | -21 | 20.94 | 245.69 | -3.64 | 11.43 | 0.3007 | -1660.1 | 999999 | |
| 4 | -21 | 2 | -21 | 21.02 | 245.31 | -4.02 | 12.50 | 0.3033 | -1241.7 | 999999 | |
| 21 | -21 | 11 | -21 | 20.41 | 245.04 | -4.29 | 13.83 | 0.2945 | -1695.0 | 999999 | |
| 0 | 5 | 0 | 3 | 22.51 | 244.85 | -4.48 | 12.71 | 0.3291 | -736.0 | -575.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
