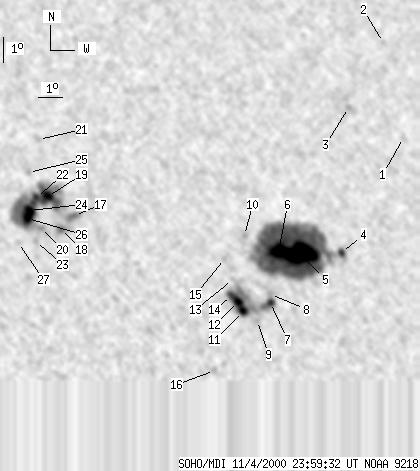

SOHO MDI 2000-11-04 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144 | 938 | 74 | 486 | 19.15 | 252.78 | 4.33 | 344.83 | 0.2731 | 713.1 | 164.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-04 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 23.45 | 260.77 | 12.32 | 329.81 | 0.3909 | 767.0 | 576.2 | |
| 0 | 3 | 0 | 2 | 27.39 | 260.30 | 11.85 | 335.51 | 0.4417 | 523.0 | 448.4 | |
| 0 | 5 | 0 | 3 | 24.71 | 258.52 | 10.07 | 336.00 | 0.3920 | 1017.0 | 862.8 | |
| 4 | 15 | 2 | 8 | 18.85 | 257.82 | 9.37 | 329.27 | 0.3029 | 976.9 | 689.8 | |
| 58 | 512 | 30 | 265 | 18.78 | 256.13 | 7.68 | 333.86 | 0.2885 | 2109.5 | 738.8 | |
| 26 | -5 | 14 | -5 | 18.91 | 255.24 | 6.78 | 336.73 | 0.2841 | 1849.1 | 999999 | |
| 4 | 16 | 2 | 8 | 16.89 | 254.83 | 6.38 | 334.75 | 0.2506 | 1242.6 | 660.6 | |
| 0 | 7 | 0 | 3 | 17.21 | 254.84 | 6.39 | 335.27 | 0.2555 | 429.0 | 429.3 | |
| 0 | 3 | 0 | 1 | 16.18 | 254.29 | 5.84 | 335.42 | 0.2359 | -601.0 | -526.5 | |
| 0 | 5 | 0 | 3 | 19.56 | 253.87 | 5.42 | 341.80 | 0.2861 | 745.0 | 586.5 | |
| 8 | 102 | 4 | 52 | 16.54 | 253.73 | 5.28 | 338.10 | 0.2377 | -1358.7 | -485.5 | |
| 8 | -11 | 4 | -11 | 16.94 | 253.54 | 5.09 | 339.43 | 0.2428 | -1500.4 | 999999 | |
| 0 | 2 | 0 | 1 | 17.81 | 253.32 | 4.87 | 341.45 | 0.2554 | -227.0 | -282.9 | |
| 4 | -11 | 2 | -11 | 17.18 | 253.27 | 4.82 | 340.80 | 0.2450 | -1056.1 | 999999 | |
| 0 | 3 | 0 | 2 | 18.64 | 253.02 | 4.57 | 343.51 | 0.2673 | 568.0 | 457.6 | |
| 0 | 4 | 0 | 2 | 14.23 | 252.52 | 4.07 | 339.08 | 0.1935 | -840.0 | -708.7 | |
| 0 | 16 | 0 | 8 | 20.37 | 246.91 | -1.54 | 5.06 | 0.2864 | -1189.0 | -1037.7 | |
| 0 | 11 | 0 | 6 | 19.81 | 246.35 | -2.11 | 7.17 | 0.2780 | -1399.0 | -1157.3 | |
| 10 | 196 | 5 | 101 | 21.13 | 245.79 | -2.66 | 8.30 | 0.3013 | -1510.4 | -805.7 | |
| 0 | 11 | 0 | 6 | 19.85 | 245.53 | -2.92 | 9.89 | 0.2807 | -1180.0 | -917.6 | |
| 0 | 7 | 0 | 4 | 23.44 | 245.37 | -3.08 | 8.38 | 0.3402 | -718.0 | -576.8 | |
| 4 | -19 | 2 | -19 | 21.09 | 245.34 | -3.11 | 9.71 | 0.3017 | -1069.6 | 999999 | |
| 0 | 5 | 0 | 2 | 19.33 | 245.33 | -3.12 | 10.90 | 0.2727 | -795.0 | -707.9 | |
| 8 | -19 | 4 | -19 | 20.57 | 245.06 | -3.39 | 10.91 | 0.2940 | -1443.9 | 999999 | |
| 0 | 5 | 0 | 3 | 22.10 | 244.98 | -3.47 | 10.16 | 0.3193 | -529.0 | -480.1 | |
| 10 | -19 | 5 | -19 | 20.25 | 244.99 | -3.47 | 11.37 | 0.2889 | -1758.8 | 999999 | |
| 0 | 5 | 0 | 3 | 19.29 | 244.64 | -3.81 | 13.28 | 0.2744 | -325.0 | -380.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
