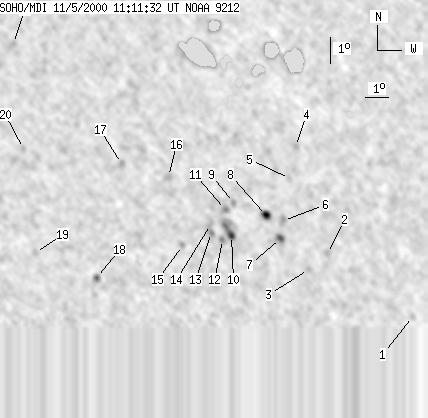

SOHO MDI 2000-11-05 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 156 | 5 | 87 | 9.97 | 269.35 | 27.04 | 284.75 | 0.4652 | 392.0 | 378.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-05 11:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 5.86 | 277.58 | 35.28 | 274.75 | 0.5788 | 643.0 | 582.9 | |
| 0 | 7 | 0 | 4 | 8.43 | 273.84 | 31.54 | 279.87 | 0.5273 | 691.0 | 683.0 | |
| 0 | 5 | 0 | 3 | 7.84 | 272.93 | 30.62 | 278.93 | 0.5129 | 647.0 | 666.5 | |
| 0 | 4 | 0 | 3 | 12.62 | 272.85 | 30.54 | 288.08 | 0.5238 | 828.0 | 676.0 | |
| 0 | 6 | 0 | 3 | 11.39 | 272.42 | 30.12 | 285.93 | 0.5136 | 528.0 | 578.1 | |
| 0 | 10 | 0 | 6 | 9.77 | 271.97 | 29.67 | 282.95 | 0.5026 | -516.0 | -237.0 | |
| 0 | 9 | 0 | 5 | 9.08 | 271.77 | 29.47 | 281.64 | 0.4981 | 1021.0 | 866.7 | |
| 5 | 13 | 3 | 7 | 9.99 | 271.23 | 28.93 | 283.63 | 0.4922 | 832.8 | 545.0 | |
| 0 | 6 | 0 | 3 | 10.54 | 269.82 | 27.52 | 285.30 | 0.4729 | 596.0 | 462.9 | |
| 3 | 26 | 2 | 14 | 9.26 | 269.62 | 27.31 | 282.71 | 0.4662 | -47.3 | 736.6 | |
| 0 | 6 | 0 | 4 | 10.28 | 269.44 | 27.14 | 284.92 | 0.4665 | 883.0 | 754.9 | |
| 0 | 5 | 0 | 3 | 9.12 | 269.21 | 26.91 | 282.54 | 0.4597 | 630.0 | 570.3 | |
| 0 | 6 | 0 | 3 | 9.40 | 268.75 | 26.45 | 283.33 | 0.4535 | 741.0 | 436.8 | |
| 0 | 9 | 0 | 5 | 9.71 | 268.73 | 26.43 | 284.01 | 0.4541 | 718.0 | 584.8 | |
| 0 | 4 | 0 | 2 | 8.94 | 267.46 | 25.16 | 282.80 | 0.4325 | 608.0 | 585.4 | |
| 0 | 9 | 0 | 5 | 11.62 | 267.08 | 24.78 | 289.04 | 0.4362 | 650.0 | 503.1 | |
| 0 | 4 | 0 | 2 | 12.18 | 265.11 | 22.81 | 291.65 | 0.4095 | -745.0 | -721.7 | |
| 0 | 6 | 0 | 3 | 7.80 | 263.74 | 21.44 | 281.53 | 0.3713 | -639.0 | -576.5 | |
| 0 | 6 | 0 | 3 | 8.82 | 261.27 | 18.97 | 285.76 | 0.3353 | -737.0 | -590.9 | |
| 0 | 5 | 0 | 3 | 12.86 | 261.04 | 18.74 | 297.13 | 0.3535 | -551.0 | -523.8 | |
| 0 | 5 | 0 | 3 | 16.98 | 260.99 | 18.69 | 307.00 | 0.3854 | -769.0 | -625.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
