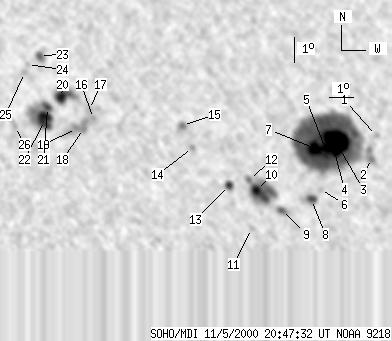

SOHO MDI 2000-11-05 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121 | 810 | 65 | 435 | 19.01 | 253.48 | 16.45 | 315.91 | 0.3842 | 673.9 | 193.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-05 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 19.30 | 258.55 | 21.51 | 308.16 | 0.4420 | 527.0 | 582.3 | |
| 0 | 18 | 0 | 10 | 18.39 | 258.21 | 21.17 | 306.81 | 0.4299 | 917.0 | 701.7 | |
| 49 | 480 | 26 | 261 | 19.06 | 256.77 | 19.74 | 309.93 | 0.4181 | 1786.3 | 686.7 | |
| -3 | -3 | -3 | -3 | 18.75 | 256.65 | 19.62 | 309.48 | 0.4136 | 999999 | 999999 | |
| 10 | -3 | 5 | -3 | 18.83 | 256.27 | 19.24 | 310.16 | 0.4098 | 2019.3 | 999999 | |
| 0 | 5 | 0 | 2 | 17.21 | 255.87 | 18.84 | 307.38 | 0.3899 | 487.0 | 362.9 | |
| 15 | -3 | 8 | -3 | 18.84 | 255.80 | 18.77 | 310.84 | 0.4042 | 1966.1 | 999999 | |
| 5 | 19 | 3 | 10 | 16.83 | 255.45 | 18.42 | 307.13 | 0.3810 | 1059.1 | 587.6 | |
| 0 | 9 | 0 | 5 | 16.42 | 254.15 | 17.12 | 308.13 | 0.3605 | -972.0 | -683.9 | |
| 5 | 55 | 3 | 29 | 17.23 | 253.17 | 16.14 | 311.51 | 0.3561 | -1575.1 | -892.4 | |
| 0 | 4 | 0 | 2 | 15.73 | 252.84 | 15.80 | 308.63 | 0.3371 | -721.0 | -534.3 | |
| 0 | 9 | 0 | 5 | 17.67 | 252.92 | 15.89 | 312.90 | 0.3576 | -897.0 | -593.6 | |
| 5 | 9 | 3 | 5 | 17.44 | 252.06 | 15.03 | 313.93 | 0.3451 | 531.2 | 392.4 | |
| 0 | 5 | 0 | 3 | 18.98 | 250.64 | 13.61 | 319.85 | 0.3467 | -800.0 | -666.4 | |
| 0 | 7 | 0 | 4 | 19.86 | 250.30 | 13.27 | 322.23 | 0.3540 | 1184.0 | 901.8 | |
| 0 | 4 | 0 | 2 | 20.19 | 246.61 | 9.57 | 331.14 | 0.3249 | -1000.0 | -877.8 | |
| 0 | 7 | 0 | 4 | 20.55 | 246.46 | 9.43 | 332.06 | 0.3290 | -735.0 | -713.7 | |
| 0 | 16 | 0 | 8 | 19.79 | 246.17 | 9.14 | 331.62 | 0.3158 | -1121.0 | -989.4 | |
| 0 | 17 | 0 | 9 | 19.79 | 245.88 | 8.85 | 332.38 | 0.3135 | -1172.0 | -966.2 | |
| 9 | 33 | 5 | 17 | 21.04 | 245.33 | 8.29 | 335.64 | 0.3279 | -1413.4 | -906.2 | |
| 3 | 82 | 2 | 43 | 20.65 | 244.72 | 7.69 | 336.69 | 0.3179 | -1061.8 | -754.6 | |
| 20 | -21 | 10 | -21 | 20.13 | 244.57 | 7.54 | 336.39 | 0.3091 | -1559.9 | 999999 | |
| 0 | 11 | 0 | 6 | 22.75 | 244.50 | 7.47 | 339.79 | 0.3485 | -1083.0 | -973.5 | |
| 0 | 3 | 0 | 1 | 22.39 | 243.98 | 6.95 | 340.71 | 0.3400 | -758.0 | -694.9 | |
| 0 | 5 | 0 | 3 | 22.07 | 243.84 | 6.81 | 340.73 | 0.3343 | -907.0 | -708.4 | |
| 0 | 8 | 0 | 4 | 19.89 | 243.37 | 6.34 | 339.52 | 0.2980 | -768.0 | -547.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
