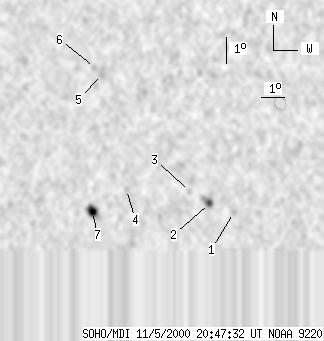

SOHO MDI 2000-11-05 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 53 | 4 | 30 | 7.55 | 210.64 | -26.39 | 80.81 | 0.4491 | -539.9 | -256.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-05 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 6.05 | 214.81 | -22.22 | 83.27 | 0.3804 | -737.0 | -555.1 | |
| 2 | 14 | 1 | 7 | 6.37 | 213.79 | -23.24 | 82.67 | 0.3972 | 1054.2 | 773.1 | |
| 0 | 3 | 0 | 2 | 6.81 | 212.92 | -24.11 | 81.80 | 0.4116 | 508.0 | 408.9 | |
| 0 | 2 | 0 | 1 | 6.81 | 210.21 | -26.82 | 82.39 | 0.4539 | -584.0 | -519.0 | |
| 0 | 10 | 0 | 6 | 11.21 | 208.75 | -28.28 | 73.57 | 0.4866 | -777.0 | -581.0 | |
| 0 | 3 | 0 | 2 | 11.47 | 208.41 | -28.63 | 73.20 | 0.4925 | -613.0 | -545.2 | |
| 5 | 17 | 3 | 10 | 5.92 | 208.78 | -28.25 | 84.53 | 0.4750 | -1104.3 | -772.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
