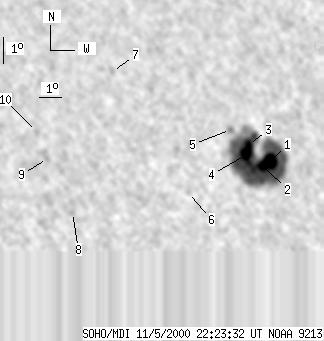

SOHO MDI 2000-11-05 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51 | 402 | 32 | 247 | 2.51 | 272.36 | 36.21 | 269.11 | 0.5921 | 1376.6 | 569.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-05 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 364 | 11 | 225 | 2.28 | 273.55 | 37.40 | 268.81 | 0.6093 | 1223.9 | 641.3 | |
| 11 | -1 | 7 | -1 | 2.10 | 273.16 | 37.00 | 268.48 | 0.6040 | 1402.8 | 999999 | |
| 9 | -1 | 5 | -1 | 2.97 | 272.51 | 36.36 | 269.88 | 0.5943 | 1438.2 | 999999 | |
| 14 | -1 | 9 | -1 | 2.59 | 272.40 | 36.25 | 269.23 | 0.5930 | 1700.5 | 999999 | |
| 0 | 7 | 0 | 4 | 3.58 | 271.68 | 35.53 | 270.87 | 0.5823 | 608.0 | 601.3 | |
| 0 | 3 | 0 | 2 | 1.23 | 269.64 | 33.49 | 266.53 | 0.5549 | 356.0 | 488.6 | |
| 0 | 6 | 0 | 4 | 6.00 | 266.37 | 30.22 | 275.45 | 0.5049 | -597.0 | -472.5 | |
| 0 | 4 | 0 | 2 | 0.64 | 264.43 | 28.28 | 264.35 | 0.4780 | 556.0 | 453.0 | |
| 0 | 13 | 0 | 7 | 2.75 | 263.37 | 27.22 | 268.67 | 0.4589 | -675.0 | -673.4 | |
| 0 | 5 | 0 | 3 | 3.80 | 262.93 | 26.77 | 270.96 | 0.4515 | -616.0 | -475.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
