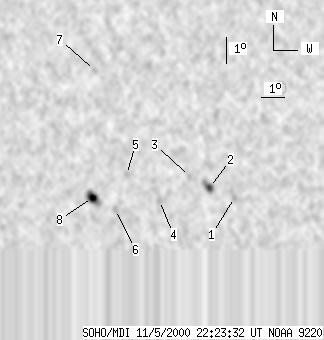

SOHO MDI 2000-11-05 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 52 | 5 | 30 | 6.42 | 210.86 | -25.29 | 82.94 | 0.4297 | -183.8 | -209.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-05 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 6.06 | 214.85 | -21.31 | 82.99 | 0.3656 | -578.0 | -523.9 | |
| 3 | 11 | 2 | 6 | 6.42 | 213.79 | -22.36 | 82.30 | 0.3832 | 1096.6 | 763.2 | |
| 0 | 3 | 0 | 2 | 6.82 | 212.93 | -23.22 | 81.50 | 0.3976 | 476.0 | 362.4 | |
| 0 | 4 | 0 | 2 | 5.87 | 211.71 | -24.45 | 84.12 | 0.4157 | 420.0 | 380.8 | |
| 0 | 3 | 0 | 2 | 6.83 | 210.24 | -25.91 | 82.14 | 0.4398 | -599.0 | -465.8 | |
| 0 | 5 | 0 | 3 | 5.47 | 209.84 | -26.31 | 85.29 | 0.4446 | -544.0 | -381.0 | |
| 0 | 4 | 0 | 2 | 10.80 | 208.53 | -27.62 | 74.10 | 0.4755 | -761.0 | -711.4 | |
| 6 | 19 | 3 | 11 | 5.90 | 208.82 | -27.33 | 84.44 | 0.4608 | -1005.1 | -709.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
