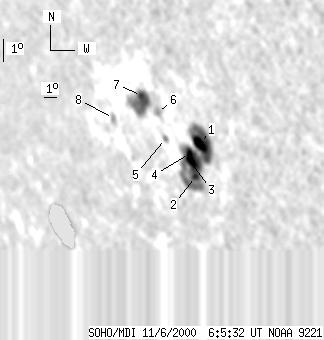

SOHO MDI 2000-11-06 06:05:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 281 | 30 | 263 | -12.37 | 175.89 | -56.03 | 107.14 | 0.8497 | 541.0 | 79.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-06 06:05:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 200 | 9 | 183 | -12.45 | 177.37 | -54.56 | 107.58 | 0.8367 | 867.6 | 324.4 | |
| 4 | -1 | 4 | -1 | -13.81 | 176.64 | -55.29 | 108.96 | 0.8462 | 495.5 | 999999 | |
| 15 | -1 | 13 | -1 | -13.21 | 176.49 | -55.43 | 108.24 | 0.8462 | 812.5 | 999999 | |
| -3 | -1 | -3 | -1 | -12.89 | 176.53 | -55.39 | 107.88 | 0.8452 | 999999 | 999999 | |
| 0 | 6 | 0 | 6 | -12.38 | 174.99 | -56.93 | 106.90 | 0.8576 | 147.0 | 113.9 | |
| 0 | 10 | 0 | 10 | -11.36 | 174.75 | -57.18 | 105.68 | 0.8578 | -284.0 | -261.3 | |
| 4 | 58 | 4 | 57 | -10.74 | 173.76 | -58.17 | 104.75 | 0.8652 | -926.7 | -615.6 | |
| 0 | 7 | 0 | 7 | -11.80 | 171.22 | -60.71 | 105.41 | 0.8875 | -317.0 | -216.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
