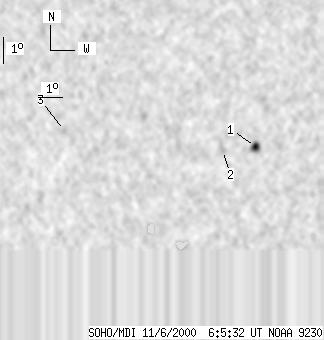

SOHO MDI 2000-11-06 06:05:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 24 | 3 | 12 | 10.40 | 215.42 | -16.50 | 66.79 | 0.3049 | 837.9 | 483.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-06 06:05:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 12 | 3 | 6 | 10.43 | 216.64 | -15.28 | 65.37 | 0.2865 | 947.1 | 663.5 | |
| 0 | 10 | 0 | 5 | 10.26 | 215.31 | -16.61 | 67.56 | 0.3058 | 646.0 | 511.4 | |
| 0 | 2 | 0 | 1 | 10.89 | 208.69 | -23.24 | 71.50 | 0.4103 | -609.0 | -736.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
