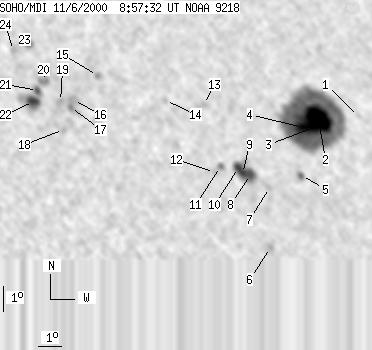

SOHO MDI 2000-11-06 08:57:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100 | 678 | 57 | 380 | 19.11 | 254.10 | 23.75 | 306.16 | 0.4711 | 788.9 | 258.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-06 08:57:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 19.23 | 258.69 | 28.34 | 301.50 | 0.5278 | 178.0 | 261.5 | |
| 47 | 449 | 27 | 257 | 19.20 | 256.85 | 26.50 | 302.97 | 0.5042 | 1610.8 | 653.1 | |
| 12 | -2 | 7 | -2 | 18.85 | 256.56 | 26.21 | 302.59 | 0.4981 | 2046.3 | 999999 | |
| 11 | -2 | 6 | -2 | 18.86 | 256.06 | 25.71 | 303.06 | 0.4919 | 2051.0 | 999999 | |
| 0 | 6 | 0 | 4 | 16.96 | 255.72 | 25.37 | 299.83 | 0.4744 | 517.0 | 466.4 | |
| 0 | 6 | 0 | 3 | 14.18 | 254.01 | 23.66 | 295.63 | 0.4333 | -916.0 | -772.0 | |
| 0 | 6 | 0 | 3 | 16.53 | 254.25 | 23.90 | 300.30 | 0.4517 | -522.0 | -574.1 | |
| 7 | 50 | 4 | 28 | 17.06 | 253.49 | 23.13 | 302.10 | 0.4453 | -1161.7 | -765.8 | |
| 5 | -8 | 3 | -8 | 17.11 | 253.14 | 22.79 | 302.55 | 0.4411 | -1564.5 | 999999 | |
| 5 | -8 | 3 | -8 | 17.35 | 253.00 | 22.65 | 303.18 | 0.4410 | -1032.1 | 999999 | |
| 0 | 6 | 0 | 3 | 17.41 | 252.22 | 21.87 | 304.14 | 0.4313 | 492.0 | 470.8 | |
| 0 | 5 | 0 | 3 | 17.18 | 251.93 | 21.58 | 303.99 | 0.4257 | 348.0 | 355.1 | |
| 0 | 12 | 0 | 6 | 19.89 | 251.81 | 21.46 | 309.40 | 0.4472 | 676.0 | 471.3 | |
| 0 | 4 | 0 | 2 | 20.09 | 250.18 | 19.83 | 311.85 | 0.4295 | 747.0 | 622.2 | |
| 0 | 5 | 0 | 3 | 21.15 | 247.37 | 17.01 | 317.91 | 0.4089 | -621.0 | -644.1 | |
| 0 | 14 | 0 | 8 | 20.16 | 246.23 | 15.87 | 318.01 | 0.3855 | -933.0 | -887.6 | |
| 0 | 9 | 0 | 5 | 19.89 | 246.07 | 15.72 | 317.76 | 0.3807 | -952.0 | -1012.5 | |
| 0 | 6 | 0 | 3 | 19.01 | 245.69 | 15.34 | 316.75 | 0.3666 | -701.0 | -626.2 | |
| 0 | 6 | 0 | 3 | 20.13 | 245.67 | 15.32 | 318.93 | 0.3792 | -966.0 | -825.9 | |
| 0 | 10 | 0 | 5 | 20.95 | 245.07 | 14.72 | 321.47 | 0.3826 | -1151.0 | -893.1 | |
| 3 | 64 | 2 | 34 | 20.59 | 244.74 | 14.39 | 321.46 | 0.3750 | -994.4 | -726.9 | |
| 10 | -21 | 5 | -21 | 20.15 | 244.53 | 14.18 | 321.07 | 0.3675 | -1428.5 | 999999 | |
| 0 | 9 | 0 | 5 | 22.45 | 244.54 | 14.19 | 324.94 | 0.3962 | -923.0 | -698.6 | |
| 0 | 7 | 0 | 3 | 22.22 | 243.88 | 13.53 | 325.82 | 0.3871 | -589.0 | -631.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
